WirelessWireless Standards IEEE 802.11b/g/n Frequency 2.402-2.482GHz WiFi Speeds 11n: Up to 300Mbps (Dynamic)

11g: Up to 54Mbps (Dynamic)

11b: Up to 11Mbps (Dynamic) Reception Sensitivity

270M: -74dBm@10% PER

130M: -76dBm@10% PER

54M: -78dBm@10% PER

11M: -90dBm@10% PER

6 M: -94dBm@10% PER

1 M: -96dBm@10% PER

 Transmission Power

<20dBm (EIRP)

 Wireless Security WPA-PSK / WPA2-PSK Wireless Functions Enable/Disable Wireless Radio, WDS BridgingHardwareDimensions 192mm×127mm×36mm Interfaces 3*10/100Mbps LAN Ports

1*10/100Mbps WAN Port Button TURBO, WPS/RESET External Power Supply 9V/0.6A Antenna Type 3 * 7dBiSoftwareWAN Type Dynamic IP/Static IP/PPPoE/PPTP/L2TP Management Access Control

Local Management

Remote Management Port Forwarding Virtual Server, UPnP, DMZ Firewall Security IP and MAC Address Binding Protocols

IPv4

IPv6

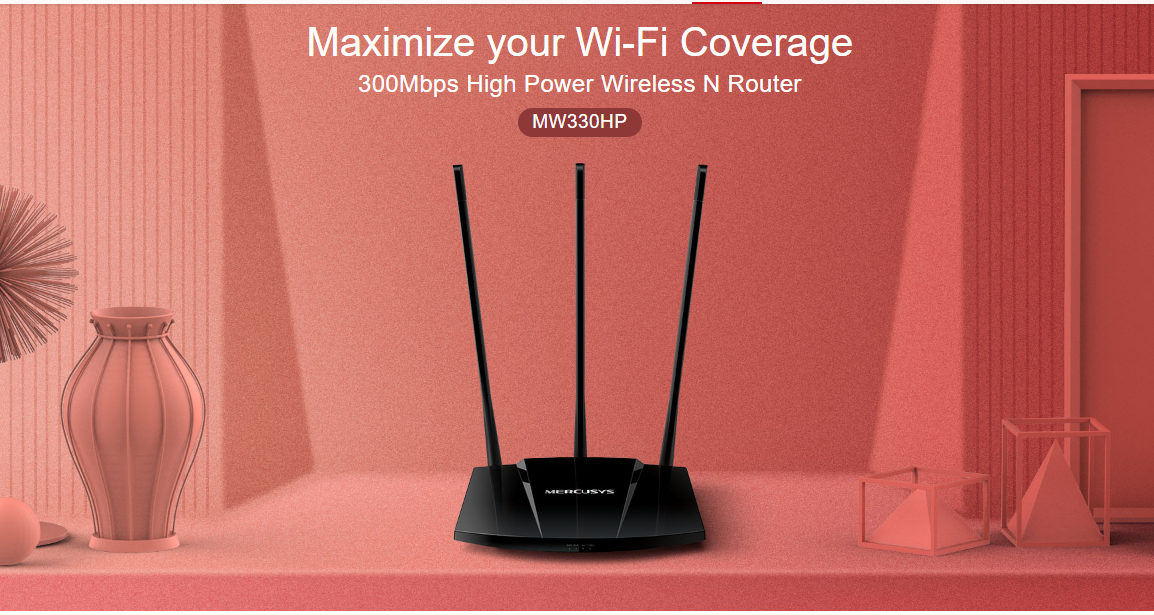

 Guest Network 2.4GHz Guest Network DHCP ServerOthersPackage Contents 300Mbps High Power Wireless N Router

( MW330HP )

Power Adapter

Quick Installation Guide

Ethernet Cable Environment Operating Temperature: 0°C~40°C (32°F~104°F)

Storage Temperature: -40°C~70°C (-40°F~158°F)

Operating Humidity: 10%~90% Non-Condensing

Storage Humidity: 5%~90% Non-Condensing
