WirelessWireless Standards

IEEE 802.11ax/b/g/n 2.4 GHz

Frequency

2.4 GHz

Reception Sensitivity

11b 11Mbps: -87.5dBm

11g 54Mbps: -74dBm

11n HT20 MCS7: -71dBm

11n HT40 MCS7: -69dBm

Transmission Power

<20dBm

Wireless Security

Support WPA-PSK/WPA2-PSK,Wireless MAC Filtering, Enable/Disable SSID Broadcast

HardwareDimensions

111*70*23.8 mm

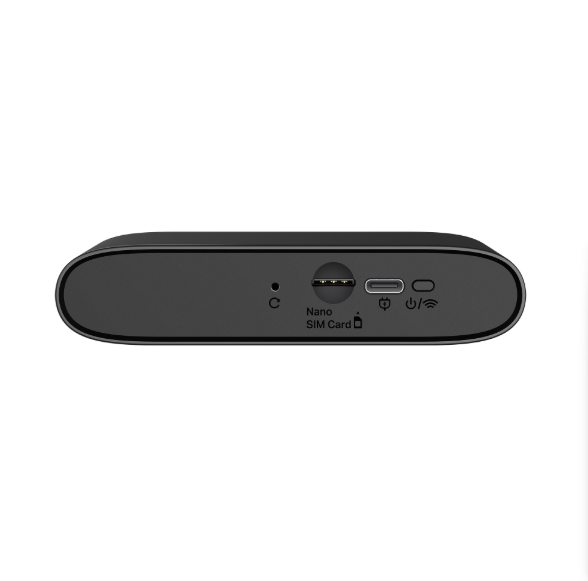

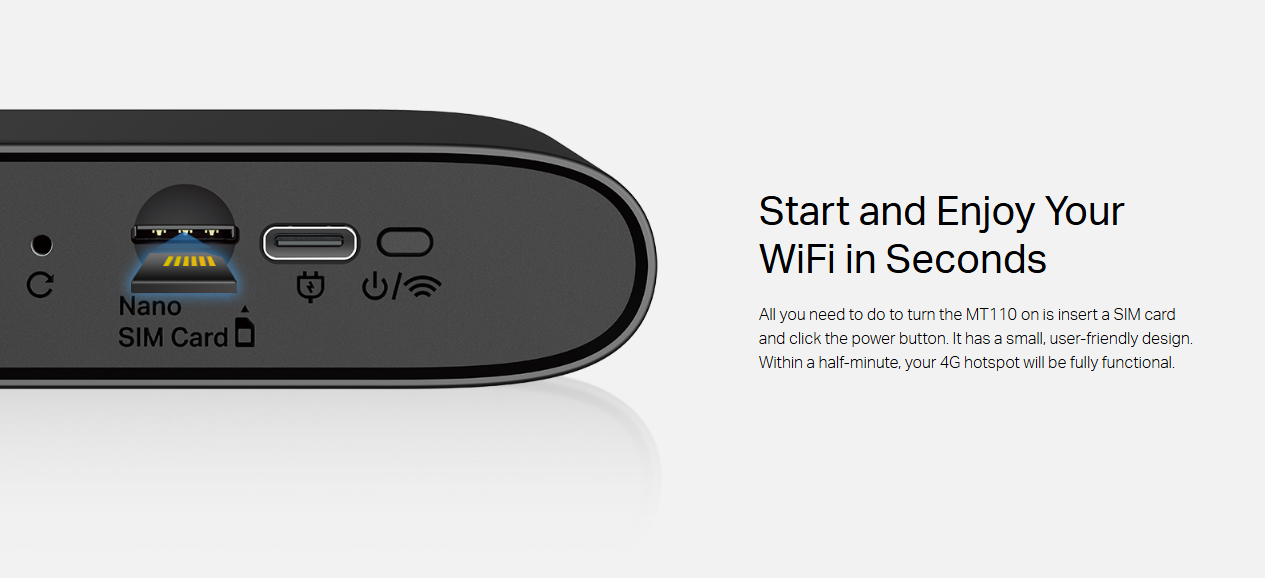

Interfaces

1 USB-C port for power supply

1 Nano SIM card slot

Button

Power/WPS Button, Reset Button

External Power Supply

5V/1A

Antenna Type

Internal Antennas

Data Rates

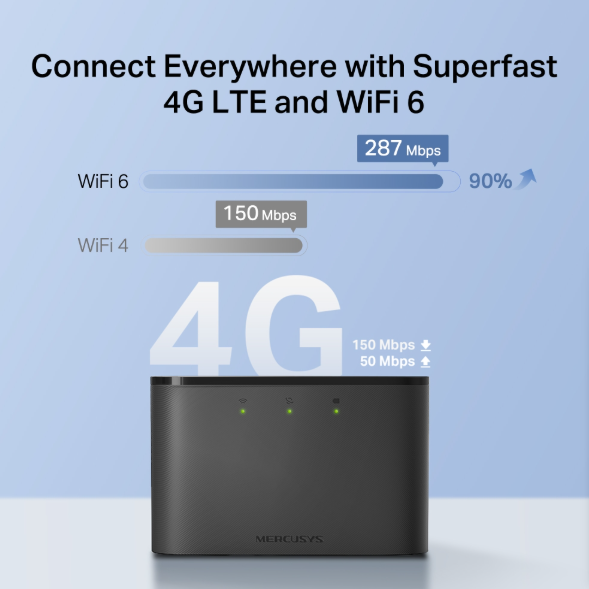

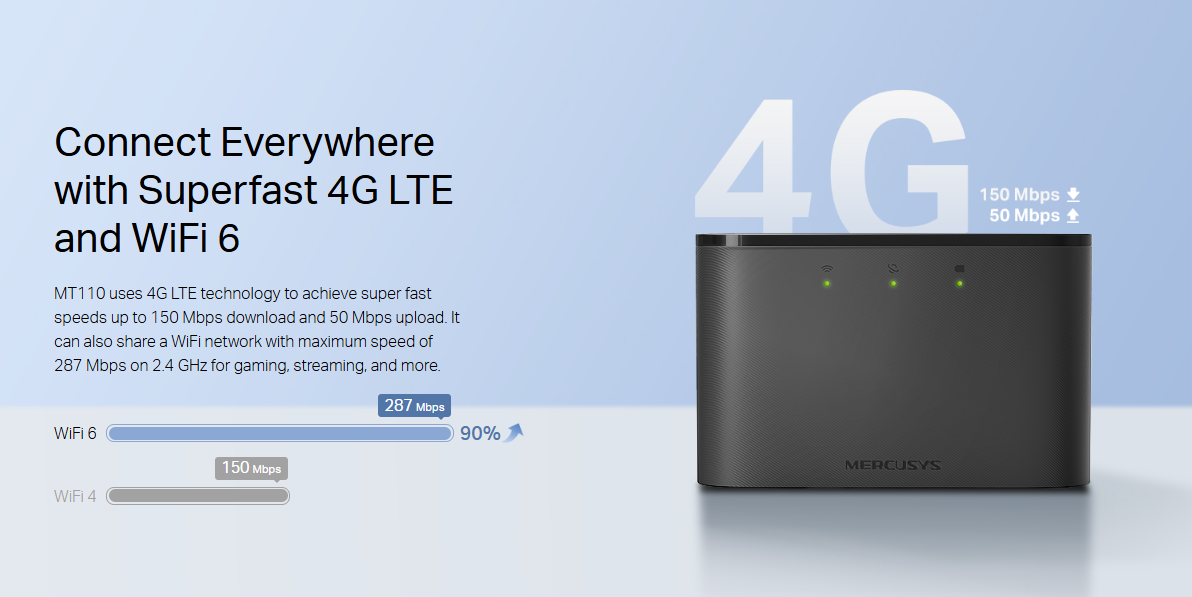

4G LTE Speed: DL: 150 Mbps, UL: 50 Mbps

WiFi Speed: 287 Mbps on 2.4 GHz

LED

Wi-Fi LED, Internet LED, Battery LED

Network Type (Invalid)

Support4G/3G network

FDD-LTE: B1/B3/B5/B7/B8/B20/B28(2100/1800/850/2600/900/800/700 MHz)

TDD-LTE: B38/B40 (2600/2300 ΜHz)

HSPA+/UMTS: B1/B5/B8 (2100/850/900 ΜHz)

SoftwareDHCP

Server, Client, DHCP Client List

OthersNetwork Services Enabled by Default

Web Server

Manage and configure device through web

• Port: 80/443   Protocol: HTTP/HTTPS

DHCP/DHCPv6

IP address assignment

• Port: 67/547   Protocol: UDP

DNS

DNS

• Port: 53   Protocol: UDP

Dropbear

Manage and configure device through app

• Port: 20001   Protocol: SSH

App management

Manage and configure device through app

• Port: 20002   Protocol: TMP

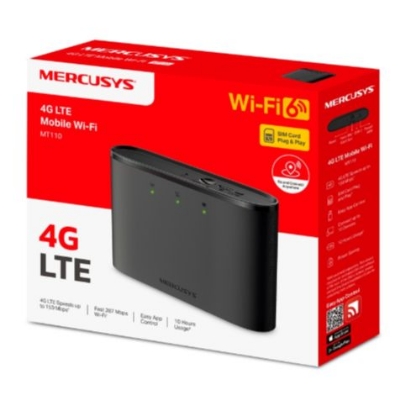

Package Contents

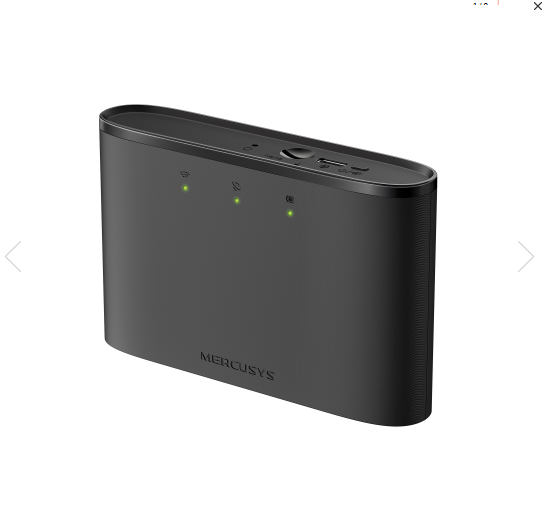

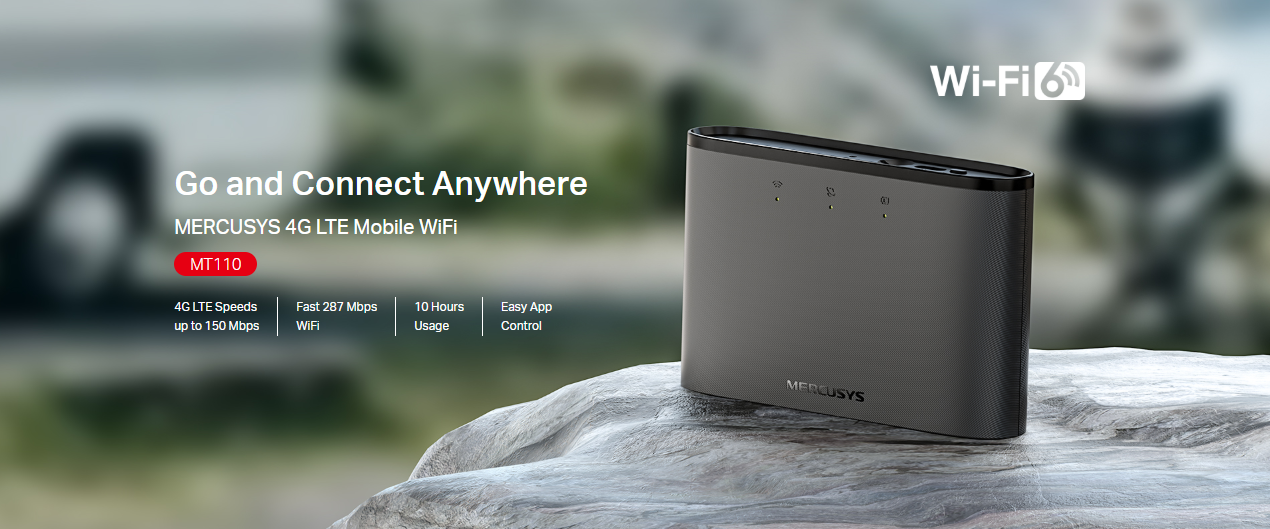

Mobile Wi-Fi MT110

USB-C Cable

Quick Installation Guide

Environment

Operating Temperature: 0°C~35°C (32°F ~95°F)

Storage Temperature: -10°C~40°C (14°F ~104°F)

Operating Humidity: 0%~75% non-condensing

Storage Humidity: 0%~65% non-condensing

System Requirements

Windows 11/10/8/7, Mac OS, Android, iOS, Windows Phone
