WirelessWiFi Speeds

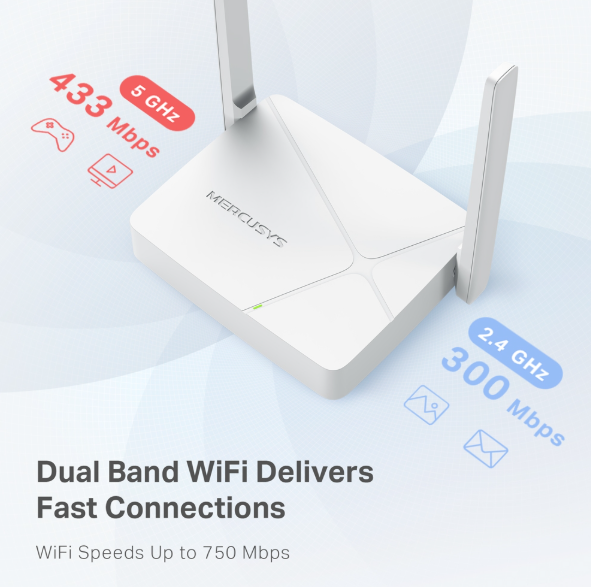

300 Mbps (2.4 GHz) + 433 Mbps (5 GHz),

compatible with 11ac/a/b/g/n Wi-Fi standards

Reception Sensitivity

2.4G

11g 6Mbps: -94dBm

11g 54Mbps: -77dBm

11n HT40 MCS7:-73dBm

11n HT20 MCS7:-76dBm

5G

11a 6Mbps:-93dBm

11a 54Mbps:-75dBm

11ac VHT20 MCS8:-70dBm

11ac VHT40 MCS9:-65dBm

11ac VHT80 MCS9:-62dBm

Transmission Power

2.4 GHz < 20dBm (EIRP)

5 GHz < 23dBm (EIRP)

Wireless Security

WPA-PSK / WPA2-PSK

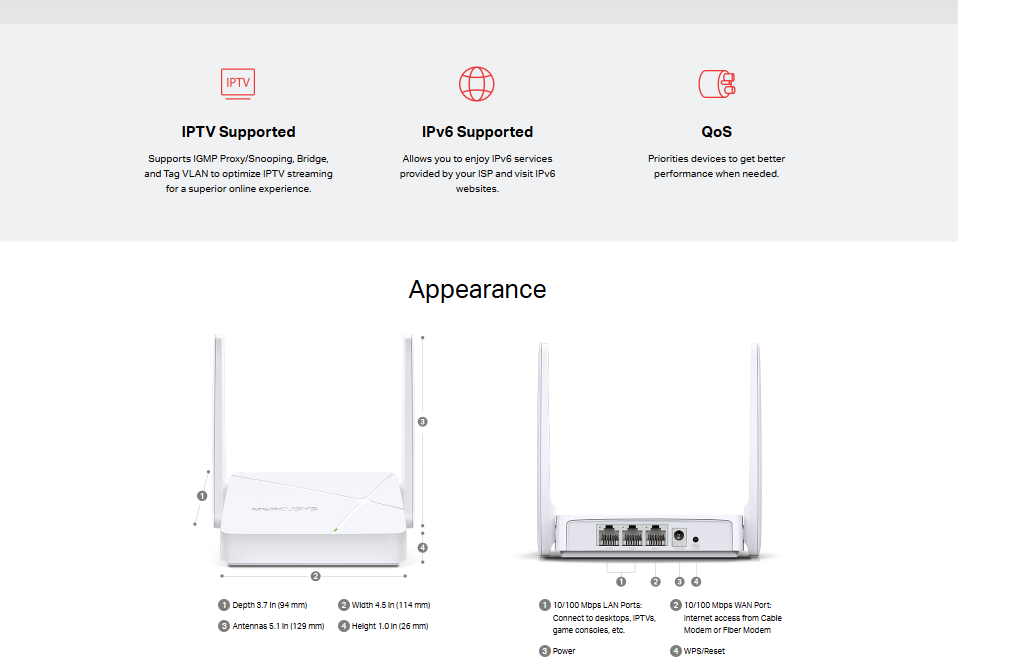

HardwareDimensions

4.5 × 3.7 × 1.0 in (114 × 94 × 26 mm)

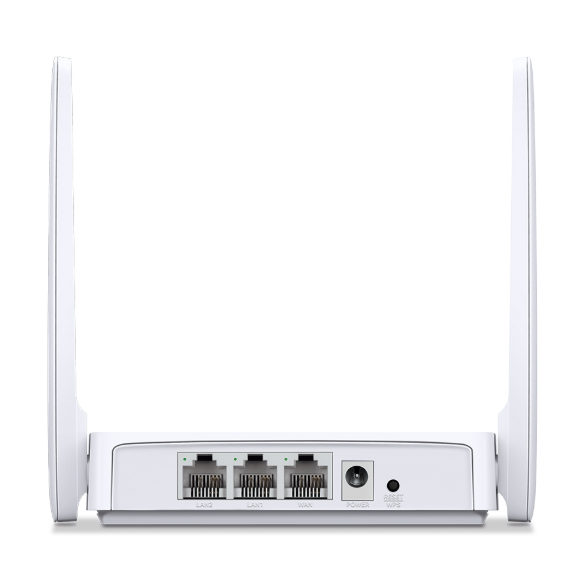

Interfaces

1× 10/100 Mbps WAN Port, 2× 10/100 Mbps LAN Ports

Button

Reset/WPS Button

Antenna Type

2× 5 dBi Fixed Omni-Directional Antennas

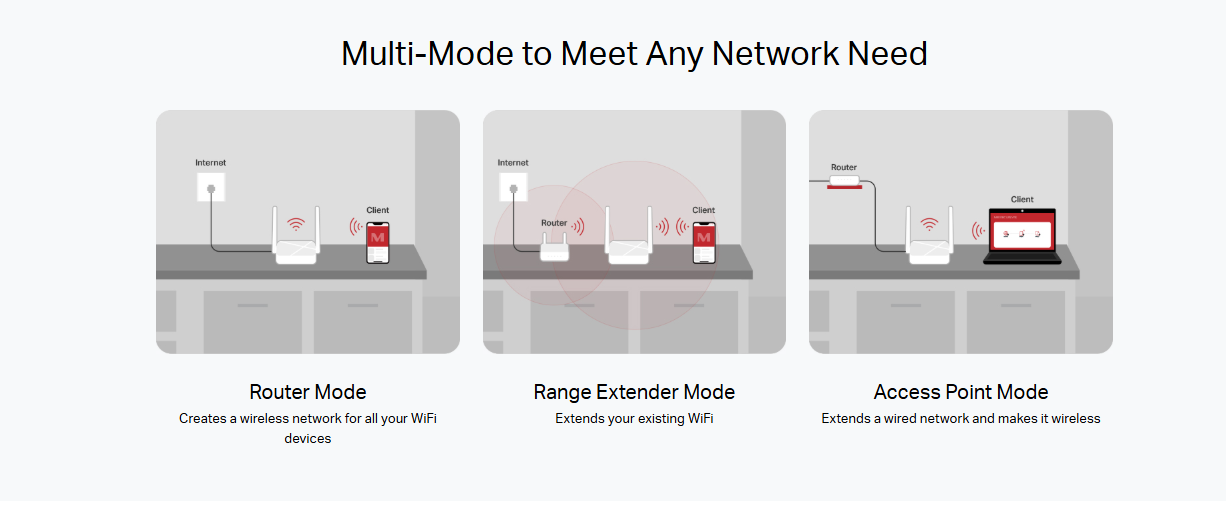

SoftwareOperation Mode

Router Mode, Range Extender Mode, Access Point Mode

WAN Type

Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Management

Access Control

Local Management

Remote Management

NAT Forwarding

Port Forwarding, Port Triggering, UPnP, DMZ

Firewall Security

SPI Firewall, IP and MAC Address Binding

Guest Network

2.4 GHz Guest Network, 5 GHz Guest Network

DHCP

Server, DHCP Client List

OthersPackage Contents

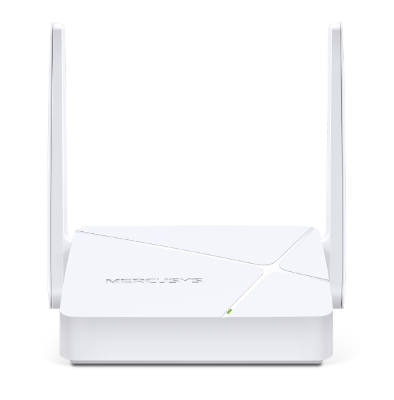

• AC750 Wi-Fi Router (MR20)

• Power Adapter

• Quick Installation Guide

• RJ45 Ethernet Cable

Environment

• Operating Temperature: 0°C~40°C (32°F~104°F)

• Operating Humidity: 10%~90% Non-Condensing

• Storage Humidity: 5%~90% Non-Condensing
