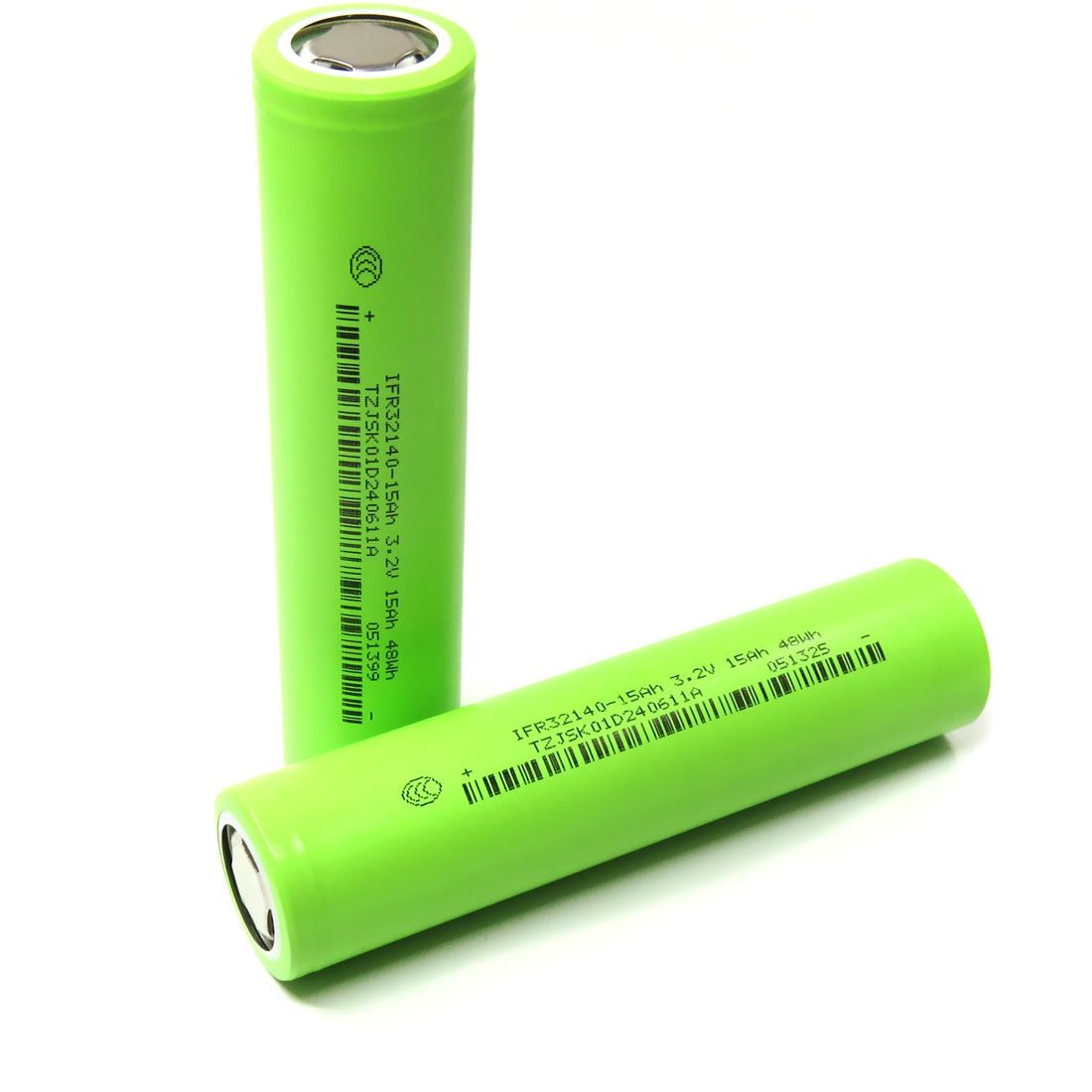

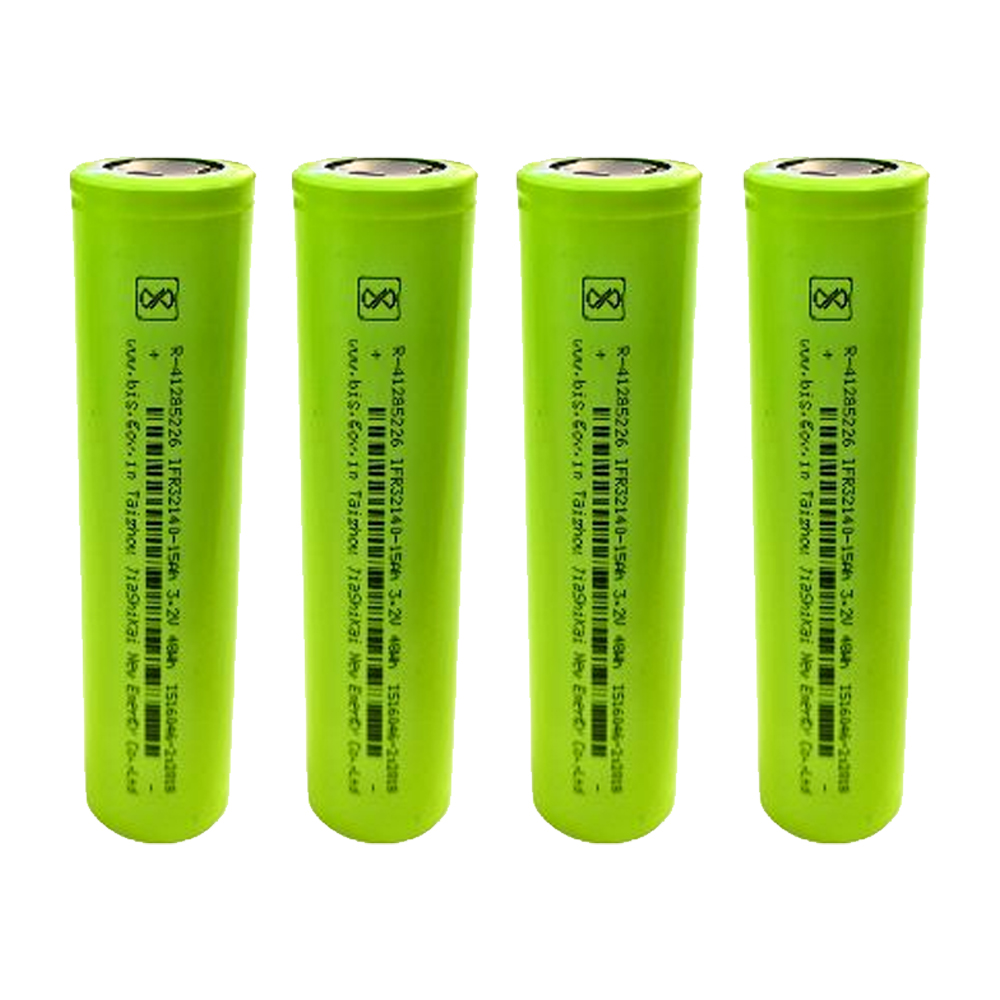

IFR 15Ah LiFePO4 Battery Cell Features:

High Capacity: Provides a substantial 15000mAh for extended usage.

Fast Charging

Long Cycle Life

Lightweight: Easier to handle and integrate into various systems.

High Discharge Rate: Capable of delivering a continuous current of up to 30 amps.

Low Self-Discharge Rate: Retains charge well during storage periods.

Specifications:

Nominal Capacity (Ah)15

Nominal Voltage (V) 3.2

Cathode Material LFP

Internal Resistance (mΩ) ≤3

Standard Discharging Current 0.5C

Maximum Continuous Current (Discharging) 2C (30A)

Dimension 32mm x 140mm (Diameter x Length)

Cut-off Voltage (Discharging) 2V

Standard Charging Current 0.5C

Maximum Continuous Current (Charging) 1C

Cut-off Voltage (Charging) 3.6V

Cycle Life ≥2500 cycles

Operating Temperature (Charging) -10°C to 60°C

Operating Temperature (Discharging) -30°C to 60°C
