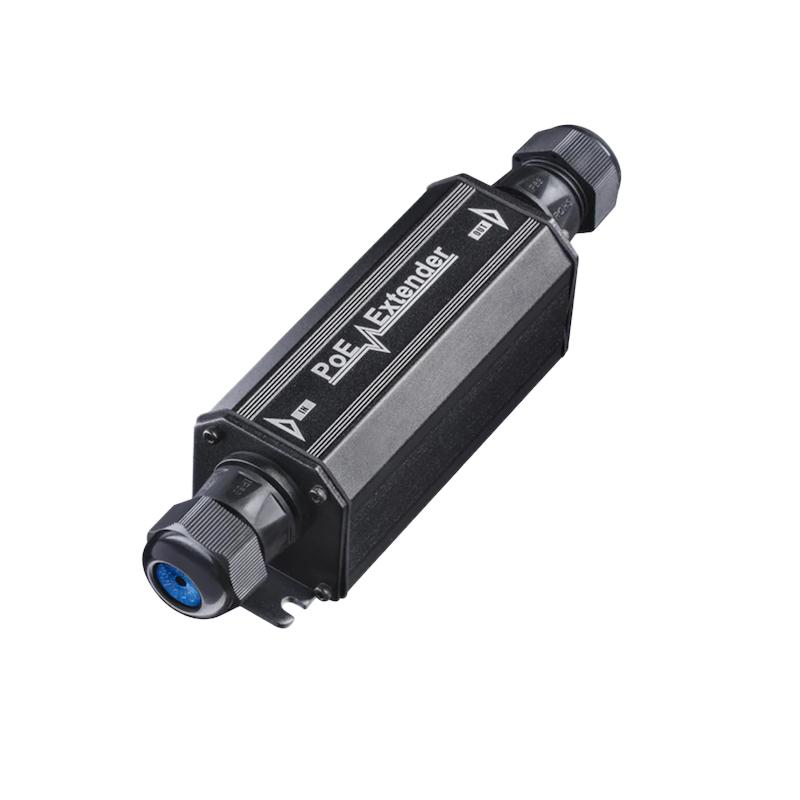

CUDY POE15 - Outdoor IP67-Rated Gigabit PoE+ Extender - Up to 30W Max Power Output - 10/100/1000 Mbps Ethernet Speed - IP67 Waterproof Rating for Outdoor Use - Compatible with IEEE 802.3af/at Standards - Operating Humidity: up to 90%, Non-Condensing

Category: Laptop Accessories
SKU: GOBP74597

Tk 5,844
Tk 8,990
Tk 8,990
35% OFF
  • Up to 30W Max Power Output
  • 10/100/1000 Mbps Ethernet Speed
  • IP67 Waterproof Rating for Outdoor Use
  • Compatible with IEEE 802.3af/at Standards
  • Operating Humidity: up to 90%, Non-Condensing







Model Version

POE15 1.0

Protocols

802.3 Protocols:

- 802.3i 10 Mbps over Twisted Pair

- 802.3u 100 Mbps over Twisted Pair

- 802.3ab 1 Gbps over Twisted Pair

- 802.3x Flow Control

- 802.3af PoE

- 802.3at PoE



PoE

Uplink Stream: 1× GbE, 802.3at/af

Uplink PIN Assignment: Mode A / Mode B

Downlink Stream: 1× GbE, 802.3at/af

Downlink Pin Assignment: Mode A



Transmission Distance:

- Cat. 5e or higher cable: 100 meters at Gigabit

- Note: Distance from extender to switch depends on switch capability.

Distance from extender to device follows extender rating



Power

Power Input: ≥30W is recommended

Max Power Output: 30W

Max Power Output Note: The actual power output depends on input

Max Power Consumption (W): 2W



Reliability

Power Protection:

- Polarity Protection

- Overvoltage Protection

- Short-Circuit Protection

- Automatic Voltage Regulation



EMS: IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV

Grounding Methods: Grounding Point



Environment:

- Ambient Operating Temperature: -25~55 ℃ (-13~131 ℉)

- Storage Temperature: -40~70 ℃ (-40~158 ℉)

- Operating Humidity: 10%~100% non-condensing

- Storage Humidity: 5%~95% non-condensing



Ingress Protection Rating: IP67



Certifications

FCC, CE

Mechanical

Install in a Daisy Chain: Up to 3 extenders in a chain



Installation:

- Desktop

- Wall-mount



Dimension:

- 185×45×45 mm

- 7.28×1.77×1.77 inches



Casing Material: Metal

Product Weight: 250 g (8.82 oz.)



Package Content

POE15

Mounting Kit

Installation Guide



Warranty

01-Year Brand Warranty








  • Up to 30W Max Power Output
  • 10/100/1000 Mbps Ethernet Speed
  • IP67 Waterproof Rating for Outdoor Use
  • Compatible with IEEE 802.3af/at Standards
  • Operating Humidity: up to 90%, Non-Condensing

Warranty: 1 Years Brand Warranty

Note: Product delivery duration may vary due to product availability in stock.
Disclaimer: The actual color of the physical product may slightly vary due to the deviation of lighting sources, photography or your device display settings.
