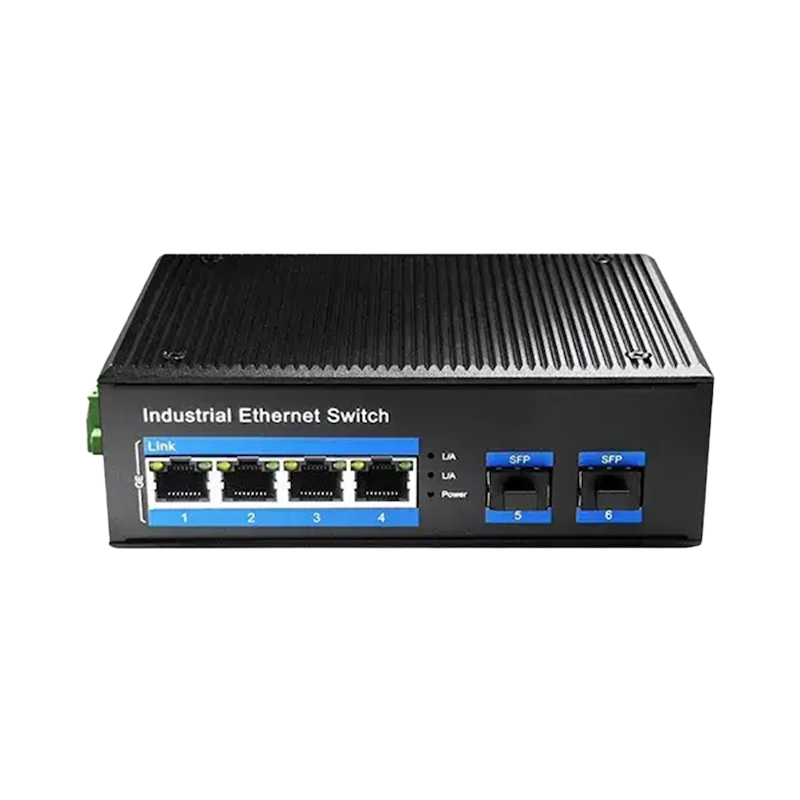

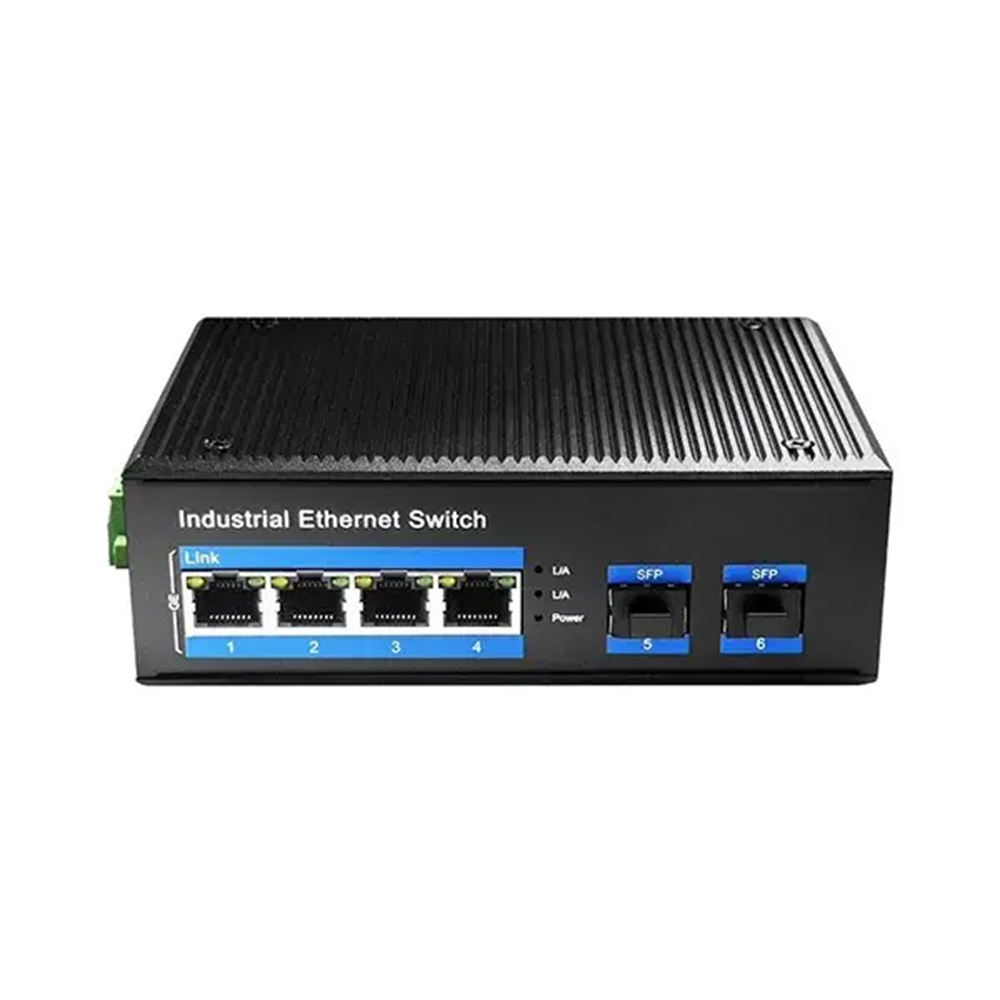

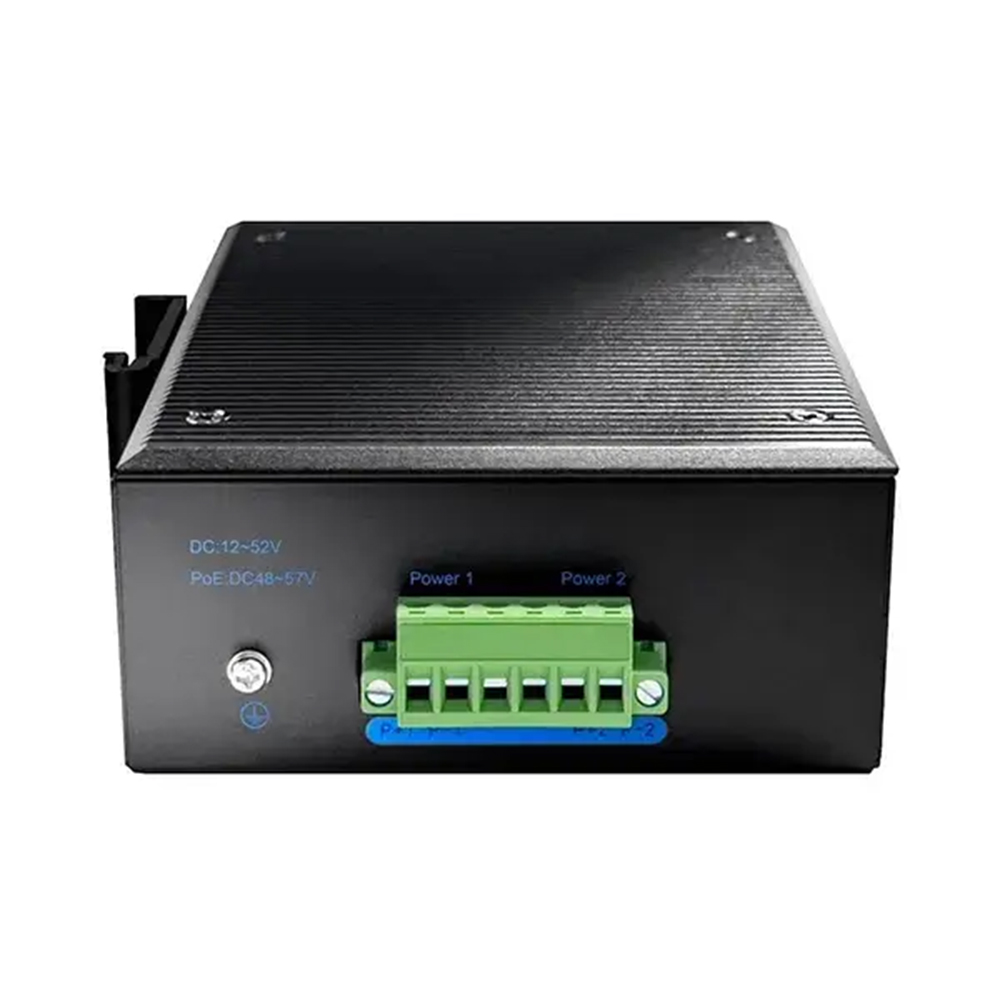

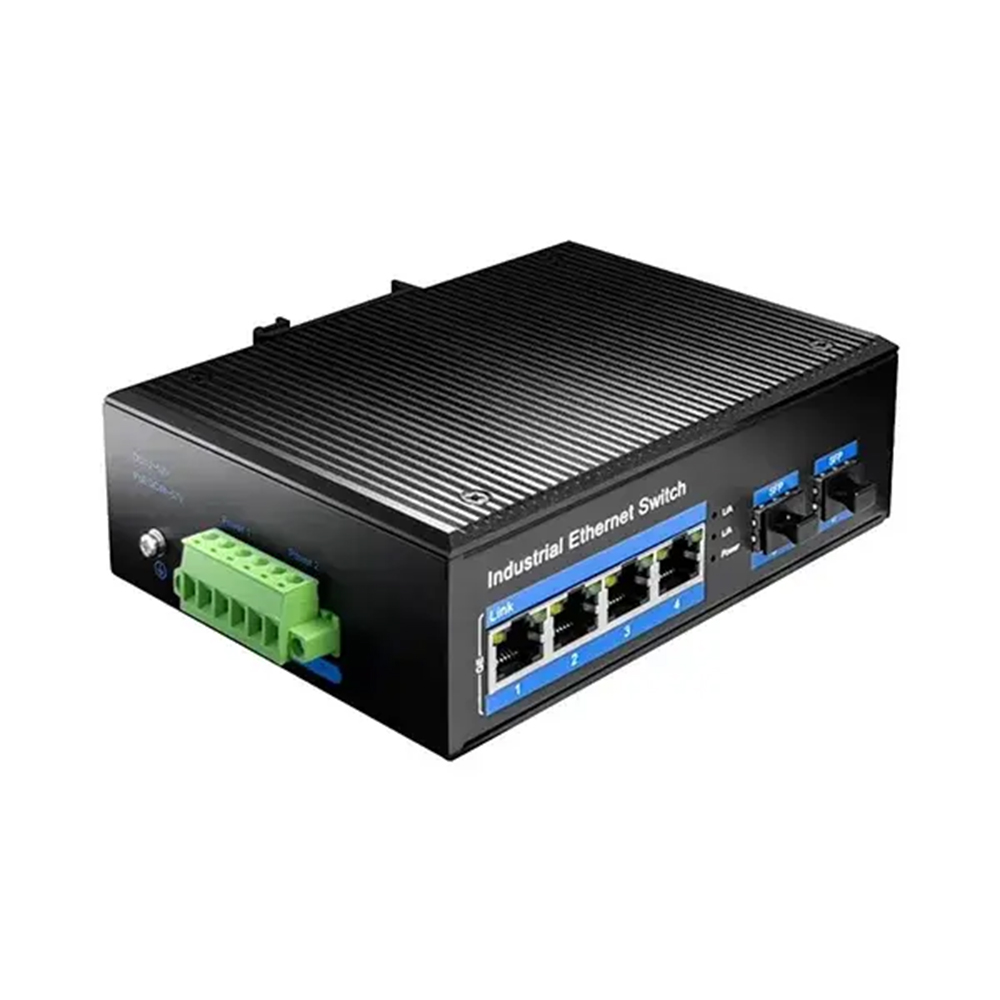

Picture of Cudy IG1004S2P 4-Port Gigabit Industrial PoE+ Switch with 2 SFP Slots - 4× PoE+ RJ45 Ports – 10/100/1000 Mbps, 30W each - 2× SFP Ports – Multi-mode 2 km, single-mode up to 80 km - Wide Temp Range – -40℃ to 85℃ operation
Picture of Cudy IG1004S2P 4-Port Gigabit Industrial PoE+ Switch with 2 SFP Slots - 4× PoE+ RJ45 Ports – 10/100/1000 Mbps, 30W each - 2× SFP Ports – Multi-mode 2 km, single-mode up to 80 km - Wide Temp Range – -40℃ to 85℃ operation
Picture of Cudy IG1004S2P 4-Port Gigabit Industrial PoE+ Switch with 2 SFP Slots - 4× PoE+ RJ45 Ports – 10/100/1000 Mbps, 30W each - 2× SFP Ports – Multi-mode 2 km, single-mode up to 80 km - Wide Temp Range – -40℃ to 85℃ operation
Picture of Cudy IG1004S2P 4-Port Gigabit Industrial PoE+ Switch with 2 SFP Slots - 4× PoE+ RJ45 Ports – 10/100/1000 Mbps, 30W each - 2× SFP Ports – Multi-mode 2 km, single-mode up to 80 km - Wide Temp Range – -40℃ to 85℃ operation
Picture of Cudy IG1004S2P 4-Port Gigabit Industrial PoE+ Switch with 2 SFP Slots - 4× PoE+ RJ45 Ports – 10/100/1000 Mbps, 30W each - 2× SFP Ports – Multi-mode 2 km, single-mode up to 80 km - Wide Temp Range – -40℃ to 85℃ operation
Picture of Cudy IG1004S2P 4-Port Gigabit Industrial PoE+ Switch with 2 SFP Slots - 4× PoE+ RJ45 Ports – 10/100/1000 Mbps, 30W each - 2× SFP Ports – Multi-mode 2 km, single-mode up to 80 km - Wide Temp Range – -40℃ to 85℃ operation
Picture of Cudy IG1004S2P 4-Port Gigabit Industrial PoE+ Switch with 2 SFP Slots - 4× PoE+ RJ45 Ports – 10/100/1000 Mbps, 30W each - 2× SFP Ports – Multi-mode 2 km, single-mode up to 80 km - Wide Temp Range – -40℃ to 85℃ operation
Picture of Cudy IG1004S2P 4-Port Gigabit Industrial PoE+ Switch with 2 SFP Slots - 4× PoE+ RJ45 Ports – 10/100/1000 Mbps, 30W each - 2× SFP Ports – Multi-mode 2 km, single-mode up to 80 km - Wide Temp Range – -40℃ to 85℃ operation

Cudy IG1004S2P 4-Port Gigabit Industrial PoE+ Switch with 2 SFP Slots - 4× PoE+ RJ45 Ports – 10/100/1000 Mbps, 30W each - 2× SFP Ports – Multi-mode 2 km, single-mode up to 80 km - Wide Temp Range – -40℃ to 85℃ operation

Category: Electric Hardware & Tools
SKU: GOBP23815
Seller: Global Brand PLC
Tk 2,946
Tk 4,150
Tk 4,150
29% OFF
0 review(s)
  • 4× PoE+ RJ45 Ports – 10/100/1000 Mbps, 30W each
  • 2× SFP Ports – Multi-mode 2 km, single-mode up to 80 km
  • Wide Temp Range – -40℃ to 85℃ operation
  • Durable & Protected – IP40 housing, 6KV ESD/EFT, shock/vibration resistant
  • Flexible Power & Mounting – Redundant 48–57V DC, DIN-rail support
*

Call For Order : 09613-800800
  • Brand: CUDY
  • Model No: IG1004S2P
  • 10/100/1000Base-TX Port: 4-Port RJ-45 auto-MDI / MDI-X
  • PoE Specification:
  • PoE Standard: IEEE802.3af/ IEEE802.3at
  • PoE ports:1-4 port support PoE
  • Power Output:
  • Max. 15.4 watts (IEEE 802.3af)
  • Max. 30 watts (IEEE 802.3at)
  • PoE port auto-detects AF/AT devices
  • Output Voltage: DC48V
  • Power Pin Assignment:1/2+;3/6-
  • Power Type: End-span( Mid-span optional)
  • Performance Specification:
  • Bandwidth: 20Gbps
  • Packet Buffer Memory:2Mbit
  • Packet Forwarding Rate:15Mpps
  • MAC Address Table: 8K
  • Installation: DIN rail
  • Maximum Frame Size: 9000bytes packet size
  • Flow Control: Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
  • Enclosure: IP40 aluminum housing
  • LED Indicator:
  • Power: Red
  • Fiber: Link 2(Green)
  • Ethernet: Yellow
  • Power Input: 48 to 57V DC redundant power
  • Power Consumption: < 3 watts
  • Surge protection: ±4KV
  • Network Protocols:
  • IEEE802.3 10BASE-T;
  • IEEE802.3i 10Base-T;
  • IEEE802.3u;100Base-TX/FX;
  • IEEE802.3ab 1000Base-T;
  • IEEE802.3z 1000Base-X;
  • IEEE802.3x;
  • Network cables:
  • 10BASE-T: Cat3,4,5 UTP(≤100 meter)
  • 100BASE-TX: Cat5 or later UTP(≤10meter)
  • 1000BASE-TX: Cat6 or later UTP(≤100 meter)
  • MTBF: >300,000hours
  • Dimensions (W x D x H): 143.7 x 103 x 44.2 mm
  • Weight: Product Weight: 0.36KG Packing Weight: 0.46KG
  • Working Environment:
  • Working temperature: -40～85℃ ;
  • Storage temperature: -40～85℃
  • Relative Humidity: 5%~95 %( no condensation)
  • 02-Year Brand Warranty

4× PoE+ RJ45 Ports – 10/100/1000 Mbps, 30W each

  • 2× SFP Ports – Multi-mode 2 km, single-mode up to 80 km
  • Wide Temp Range – -40℃ to 85℃ operation
  • Durable & Protected – IP40 housing, 6KV ESD/EFT, shock/vibration resistant
  • Flexible Power & Mounting – Redundant 48–57V DC, DIN-rail support

Warranty: 2 Years Brand Warranty
