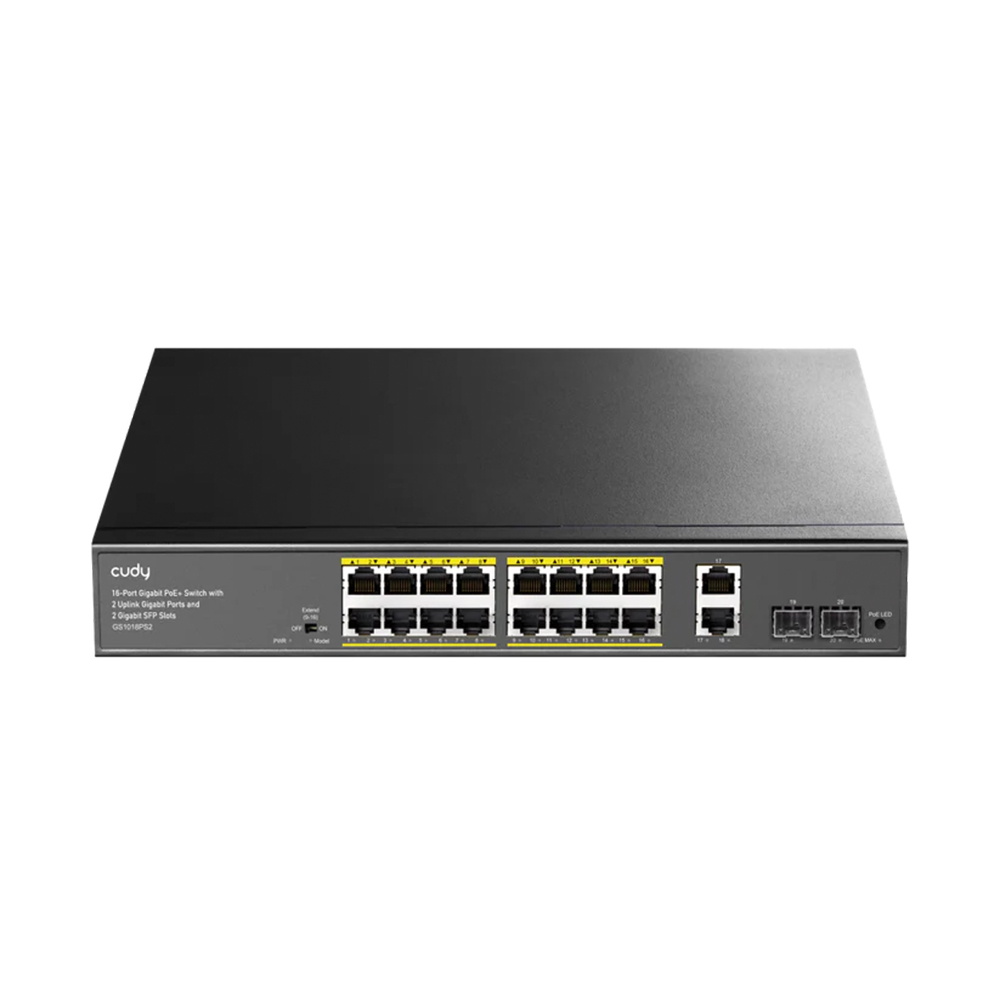

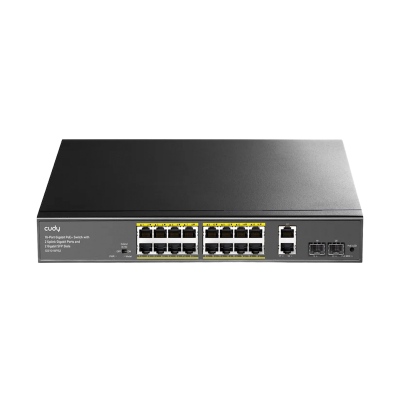

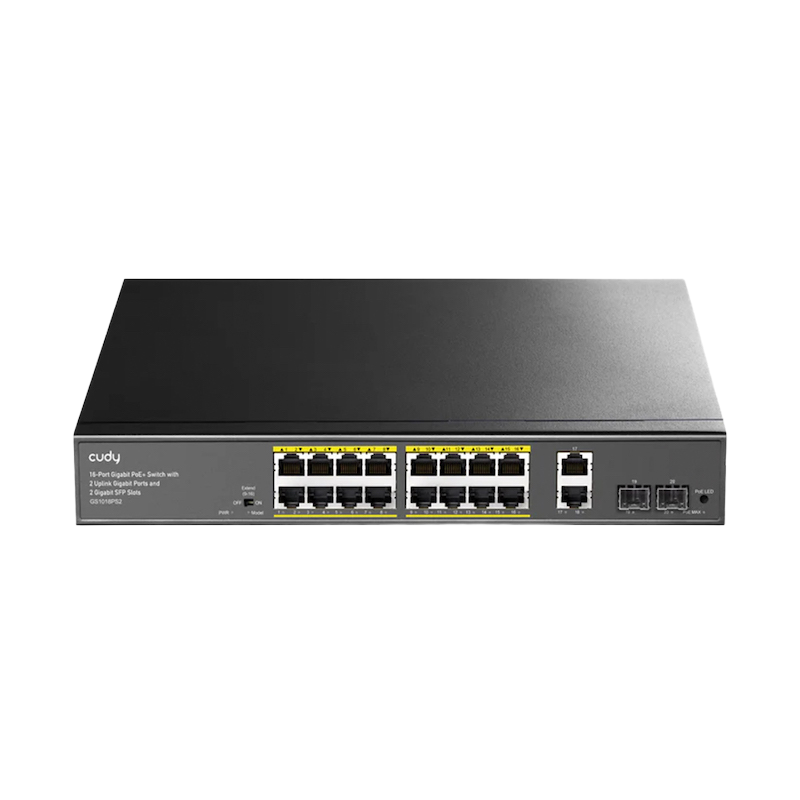

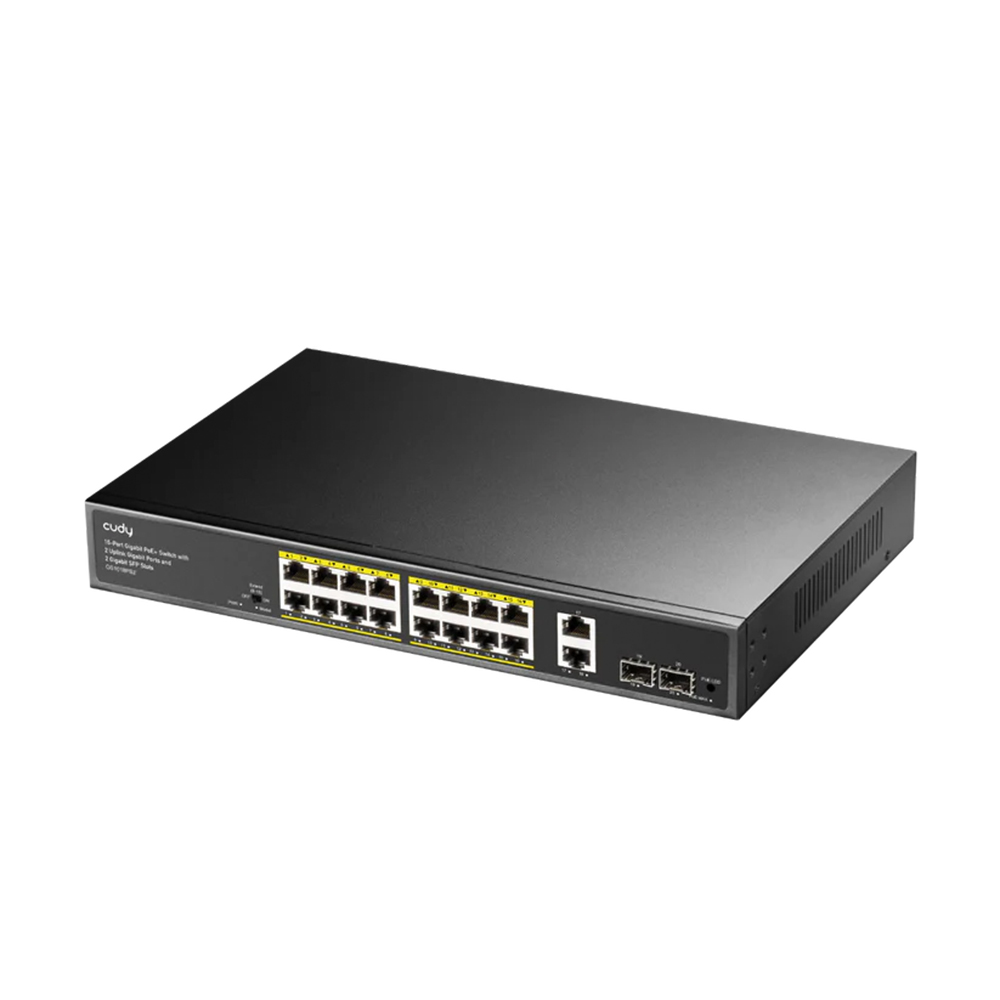

Cudy GS1018PS2 16-GbE PoE Switch with 2 Uplink GbE and 2 Uplink SFP - 16× GbE with 802.3at/af Mode A PoE - 200W Power Supply - 2× Uplink GbE + 2× Uplink SFP - Watchdog under Extend Mode

SKU: GOBP80850

Tk 15,113
Tk 21,590
Tk 21,590
30% OFF
  • 16× GbE with 802.3at/af Mode A PoE
  • 2× Uplink GbE + 2× Uplink SFP
  • 200W Power Supply
  • Default/Extend Modes
  • Watchdog under Extend Mode
  • Desktop, Rack-Mount
  • 320×207×44 mm (12.6×8.15×1.73″)

*




Interface

Physical Buttons: Default/Extend DIP switch

1.25G SFP Slots: 2

Gigabit RJ45 Ports: 2

Gigabit RJ45 PoE Ports: 16

Max Power on a Single PoE Port: 30W

PoE Port Notes: PoE ports support 802.3at/af standards.

Extend Mode Ports: #9~#16

LED: Power, Speed/Link/ACT of Each Ethernet Port, Extend Status

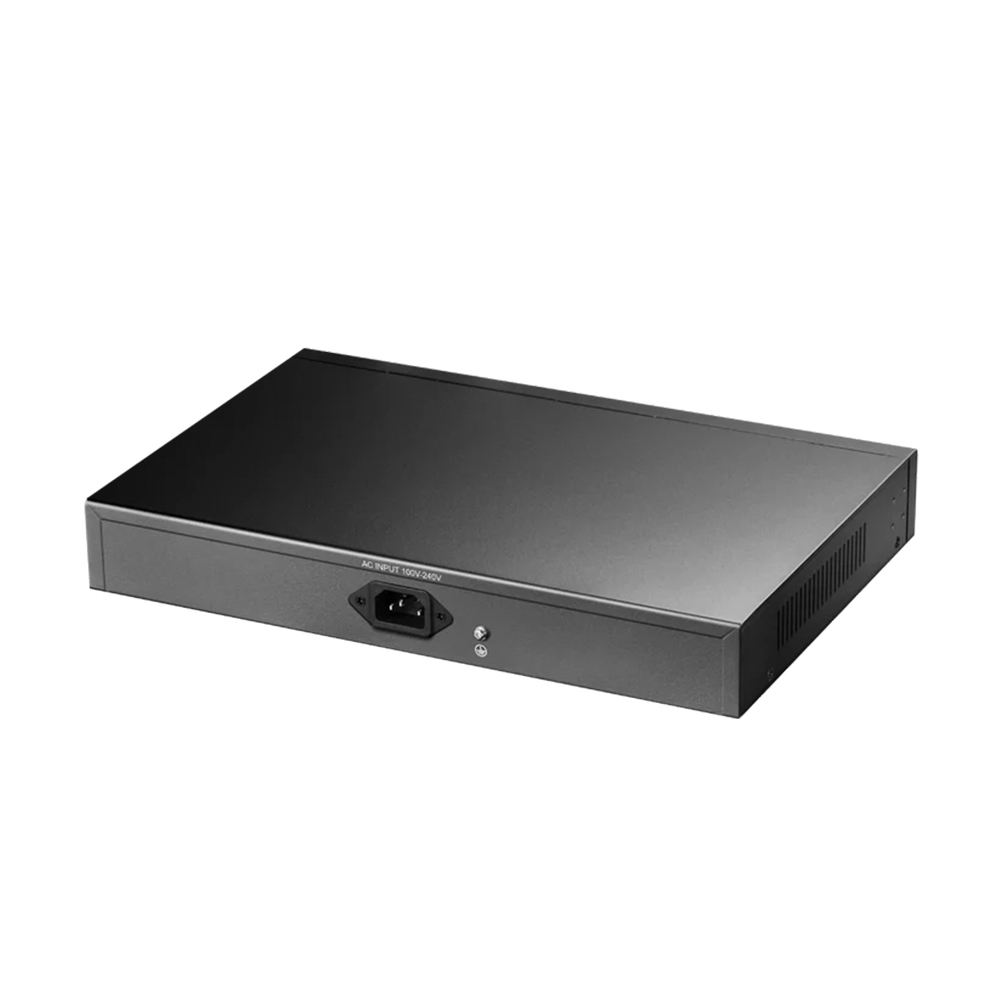

Power Input: AC Inlet

Power

Power Methods: AC

AC: 100-240V 50/60Hz

Max Power Consumption: 200W

Max Power Excluding PoE: 10W

Mechanical

Casing Material: Metal

Installation: Desktop, Rackmount via Brackets

Weight

Product Weight: 1789 g (63.11 oz.)

Device Dimension

320×207×44 mm

12.6×8.15×1.73 inches

Model Version

GS1018PS2 1.0

Performance

Copper Speed and Distance:

Cat. 3 or higher cable: 100 meters at 10 Mbps

Cat. 5 or higher cable: 100 meters at 100 Mbps

Cat. 5e or higher cable: 100 meters at Gigabit

Cat. 5e or higher cable: 250 meters at 10 Mbps

Copper Speed and Distance Note: 250-meter transmission is only available on the Extend Mode ports.

MAC Address Table: 8192

Max Switching Capacity: 40 Gbps

Max Forwarding Rate: 29.76 Mpps

Packet Buffer: 3 Mbit

Reliability

Grounding Methods: Three-Prong Plug

Lightning/Surge Protection: 4kV

ESD Contact Protection: 6kV

ESD Air Protection: 8kV

Environment:

Operating Temperature: -10~50 ℃ (14~122 ℉)

Storage Temperature: -40~70 ℃ (-40~158 ℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~95% non-condensing

Switching

802.3 Protocols:

802.3i 10BASE-T

802.3u 100BASE-T

802.3ab 1000BASE-T

802.3z 1.25 Gbps over Fiber

802.3x Flow Control

802.3af PoE

802.3at PoE

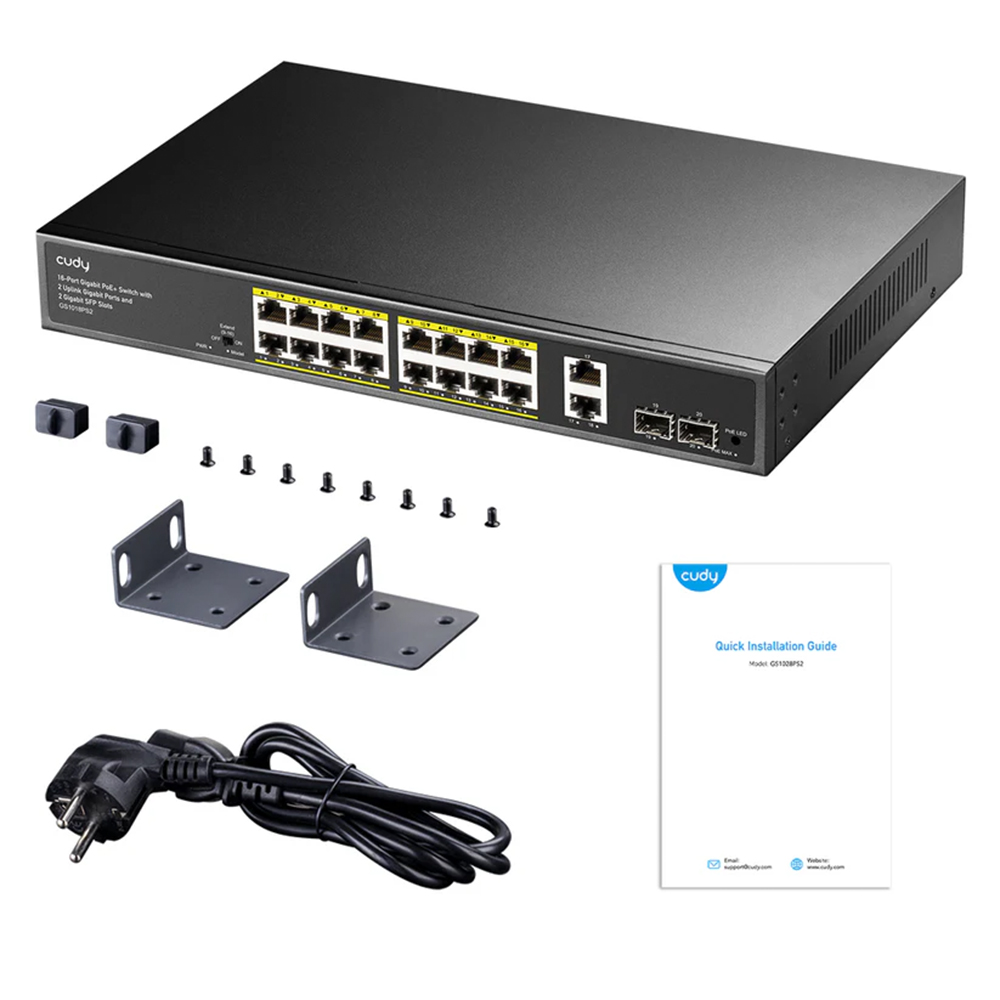

Included in the Box

GS1018PS2

Power Cord

Mounting Kit

Installation Guide

Warranty

2-Year Brand Warranty








  • 16× GbE with 802.3at/af Mode A PoE
  • 2× Uplink GbE + 2× Uplink SFP
  • 200W Power Supply
  • Default/Extend Modes
  • Watchdog under Extend Mode
  • Desktop, Rack-Mount
  • 320×207×44 mm (12.6×8.15×1.73″)

Warranty: 2 Years Brand Warranty

Note: Product delivery duration may vary due to product availability in stock.
Disclaimer: The actual color of the physical product may slightly vary due to the deviation of lighting sources, photography or your device display settings.
