Model

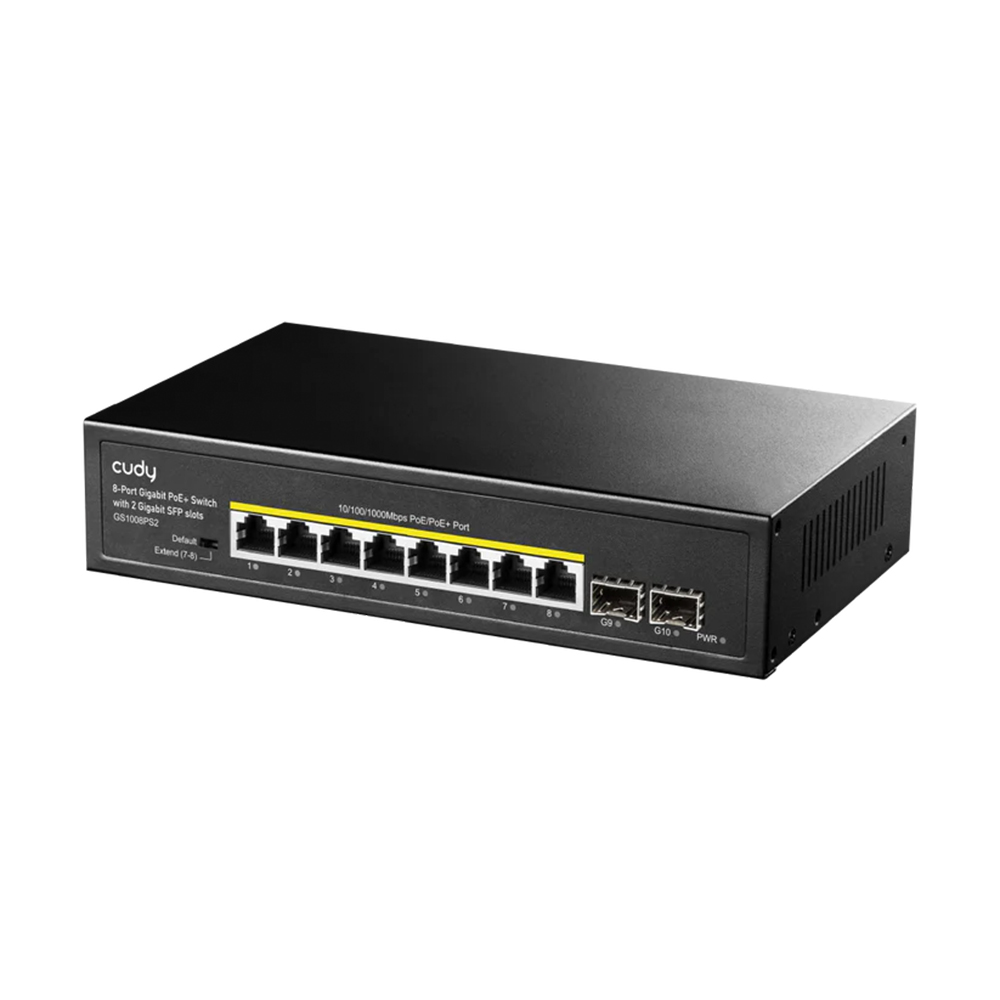

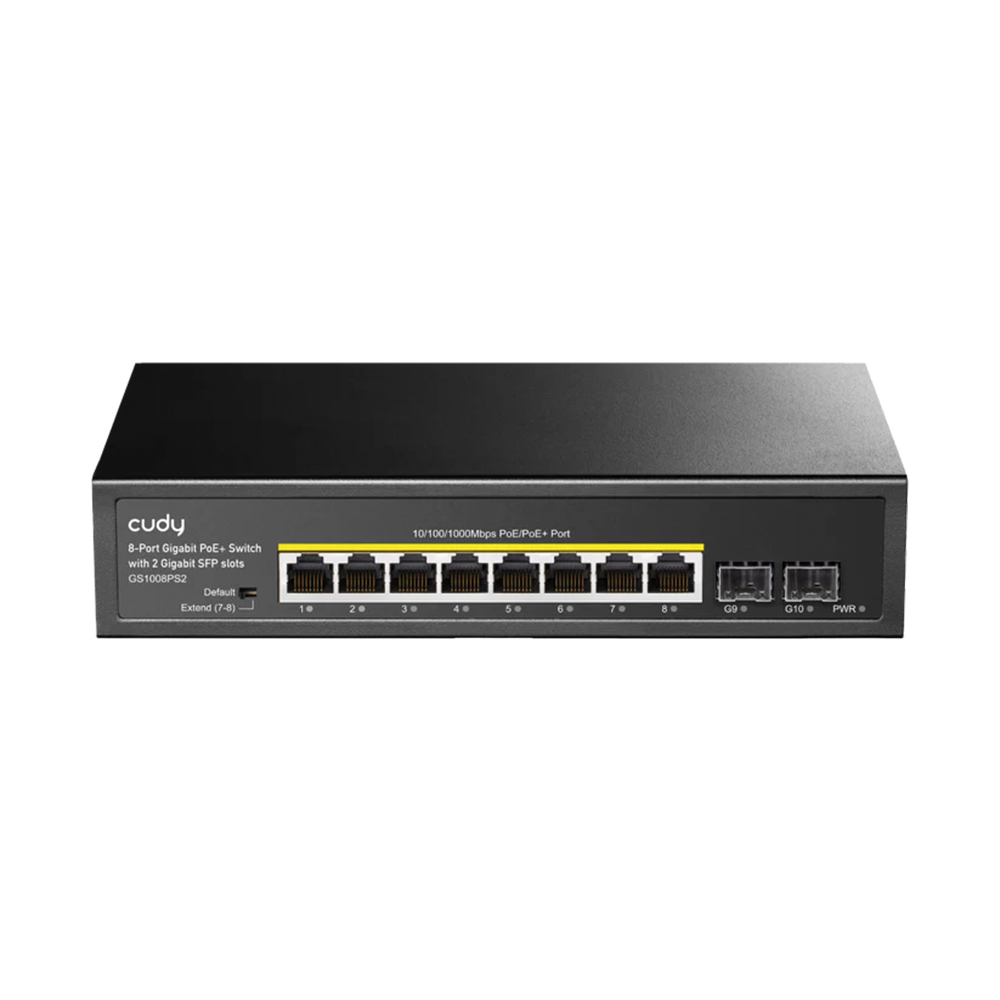

GS1008PS2 1.0

Interfaces

1.25G SFP Slots: 2

Gigabit RJ45 Ports: 8

Gigabit RJ45 PoE Ports: #1~#8

Max Power on a Single PoE Port: 30W

PoE Port Notes: The PoE ports comply with IEEE 802.3at/af standards.

Shielded RJ45 Port: True

Extend Mode Ports: #7~#8

LED:

- Power

- DIP Mode (SW)

- Link/ACT of Each Ethernet Port

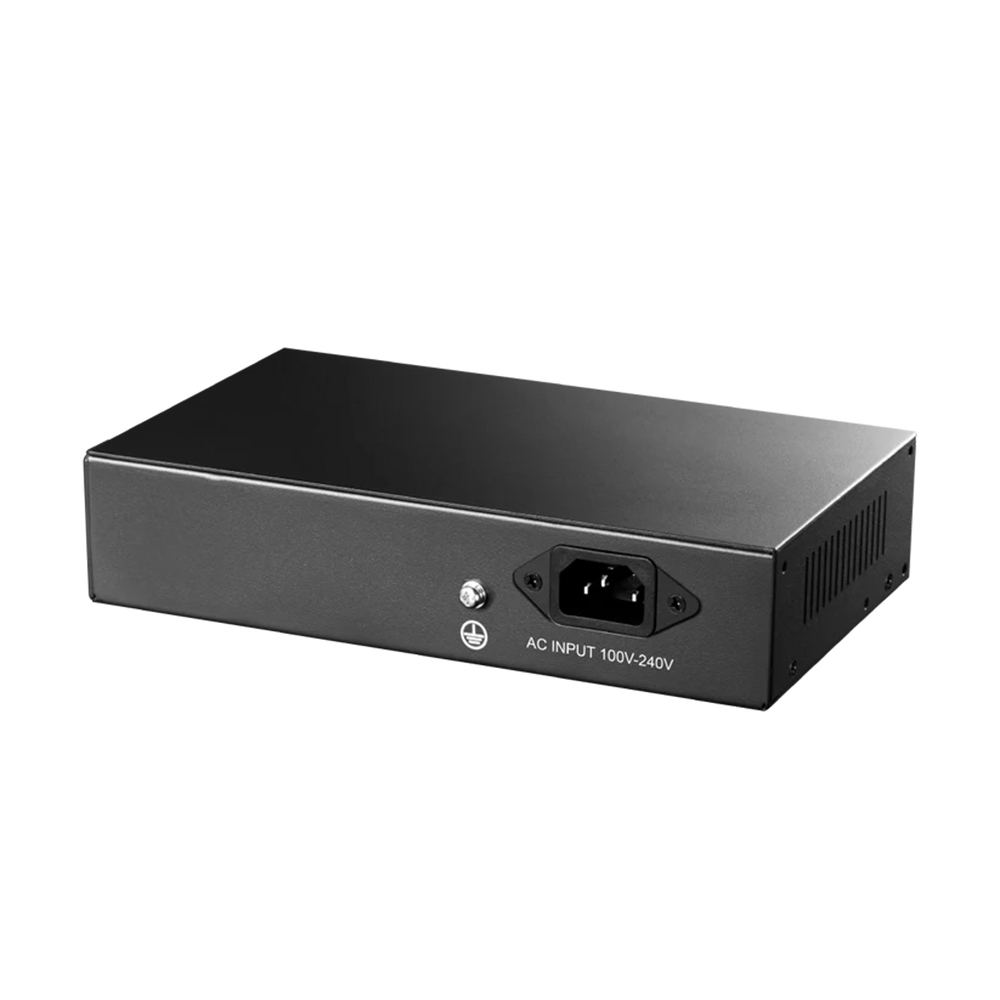

Power Input: AC Inlet

Physical Buttons: Default/Extend DIP switch

Power

Power Methods: AC

AC: 100-240V~, 50/60Hz

Power Supply: 120W

Max Power Excluding PoE: 6W

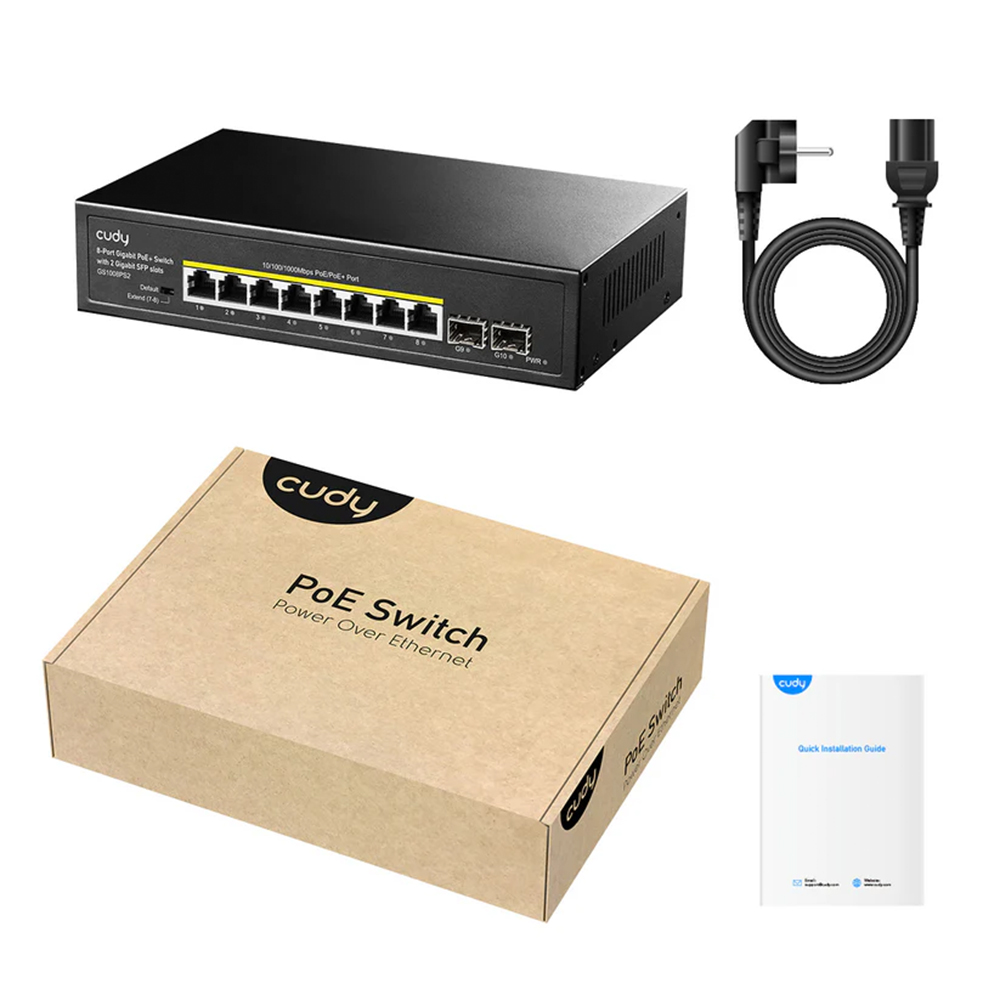

Package Content

GS1008PS2

Power Cord

Installation Guide

Performance

Copper Speed and Distance:

- Cat. 3 or higher cable: 100 meters at 10 Mbps

- Cat. 5 or higher cable: 100 meters at 100 Mbps

- Cat. 5e or higher cable: 100 meters at Gigabit

- Cat. 5e or higher cable: 250 meters at 10 Mbps

Copper Speed and Distance Note: 250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.

MAC Address Table: 2048

Max Switching Capacity: 20 Gbps

Max Forwarding Rate: 14.88 Mpps

Jumbo Frame: 9 KB

Packet Buffer: 2 Mbit

Reliability

Grounding Methods: Three-Prong Plug

Environment:

- Operating Temperature: 0~40 ℃ (32~104 ℉)

- Storage Temperature: -40~70℃ (-40~158 ℉)

- Operating Humidity: 10~90% non-condensing

- Storage Humidity: 10~95% non-condensing

Switching

802.3 Protocols:

- 802.3i 10BASE-T

- 802.3u 100BASE-TX

- 802.3ab 1000BASE-T

- 802.3z 1000BASE-X

- 802.3x Flow Control

- 802.3af PoE

- 802.3at PoE

Mechanical

Dimension:

- 220×161×44 mm

- 8.66×6.34×1.73 inches

Product Weight: 1773 g (62.54 oz.)

Casing Material: Metal

Installation:

- Desktop

- Rackmount via Brackets (Brackets not included in the box)

Warranty

02-Year Brand Warranty
