Model

GS1005PTS1

Main Features

Switching Capacity: 12Gbps

Throughput: 8.928Mpps

Packet Buffer: 1Mb

MAC Address: 2K

Jumbo Frame: 9216bytes

Transfer Mode: Store and forward

MTBF: 100000 hour

Network protocol:

IEEE802.3 (10Base-T)

IEEE802.3u (100Base-TX)

IEEE802.3ab(1000Base-TX)

IEEE802.3z(1000Base-FX)

IEEE802.3x (Flow control)

PoE Protocol:

IEEE802.3af （15.4W）

IEEE802.3at （30W）

IEEE802.3at （4 Pair 60W）

Network Medium:

10Base-T : Cat3、4、5 or above UTP(≤100m)

100Base-TX : Cat5 or above UTP(≤100m)

1000Base-TX : Cat5 or above UTP(≤100m)

Optical Media:

Multimode fiber: 50/125, 62.5/125, 100/140μm

Single-mode fiber: 8/125, 8.7/125, 9/125, 10/125μm

Hardware Features

PWR（power supply):

Lighting: Powered

Un-Light: No Power

Mode（DIP):

Lighting: VLAN

Un-Light: Default

Flashing: Extend

1-6 Gree（Link&Data):

Lighting: Connecting

Flashing: Data Transmit

Un-Light: Disconnect

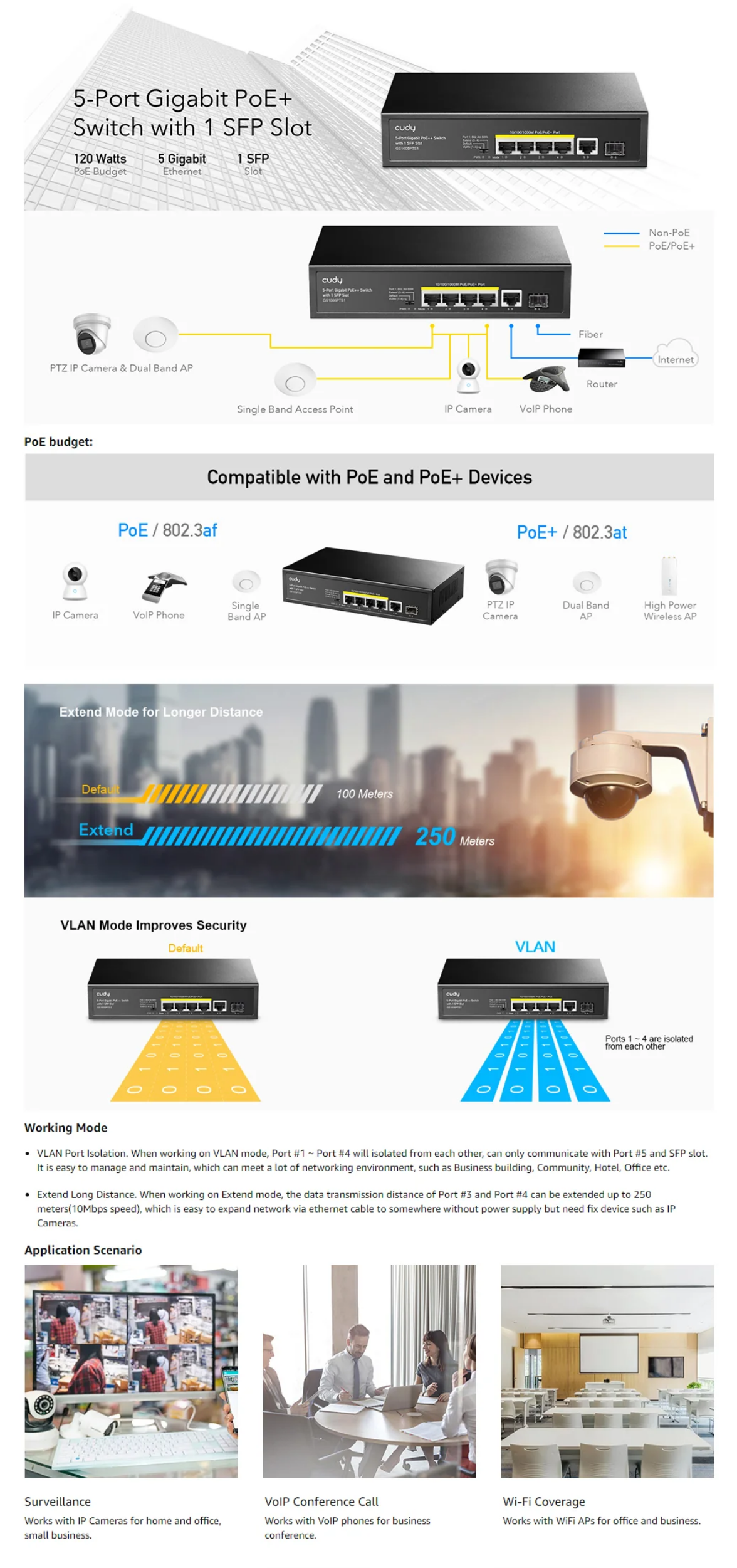

DIP Switch:

VLAN: Port isolation mode. In this mode, the PoE ports (1-4) of the switch cannot communicate with each other, and can only communicate with the UP-link port.

Default: In normal mode, all ports can communicate with each other, and the transmission distance is within 100 meters

Extend: Link extension mode, 3-4 ports PoE power supply, and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M

Power

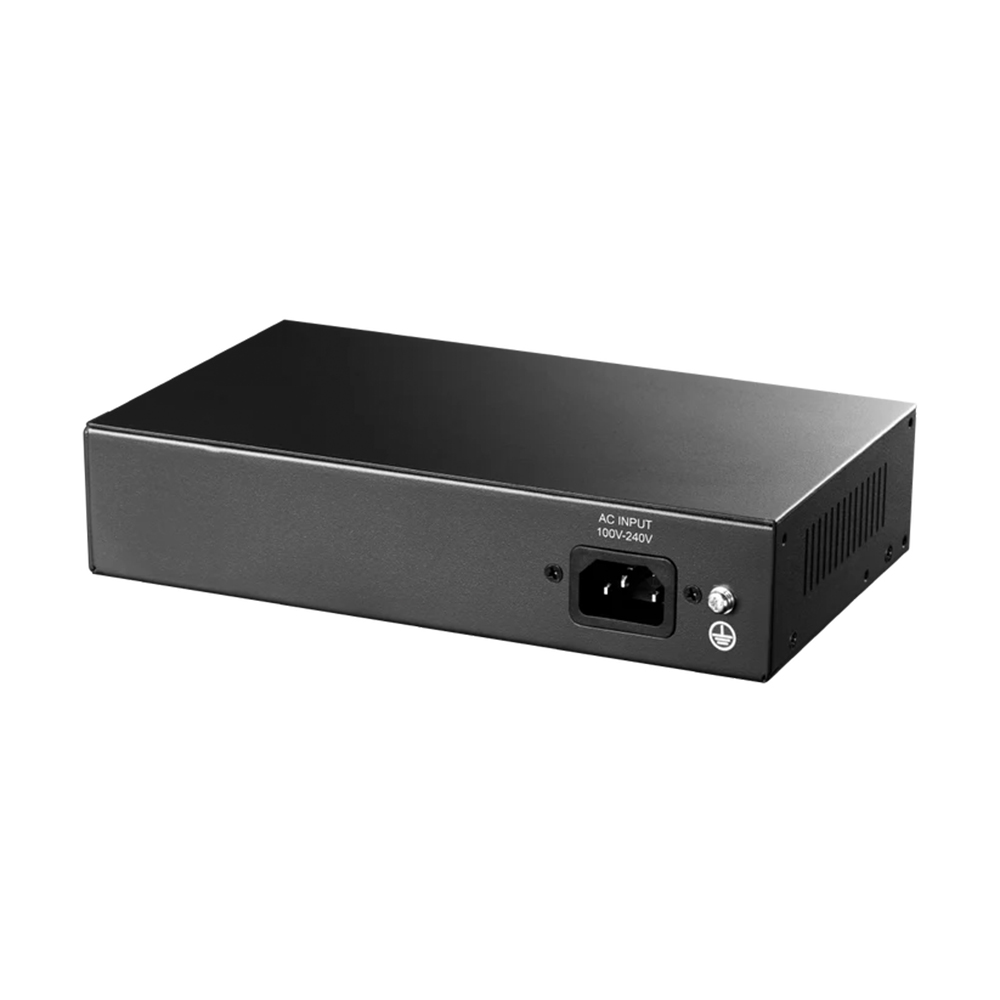

Input Voltage: AC 100-240 V

Environment

Working Temperature: -20~50°C

Storage Temperature: -40~85°C

Working Humidity: 10%~90%，non-condensing

Storage Temperature: 5%~90%，non-condensing

Working Height: Maximum10,000 feet

Storage heigh: Maximum 10,000 feet

Dimensions (L*W*H)

Product Dimension: 200*118*44mm

Package Dimension: 245*190*60mm

Weight

N.W: 0.6kg

G.W: 0.9kg

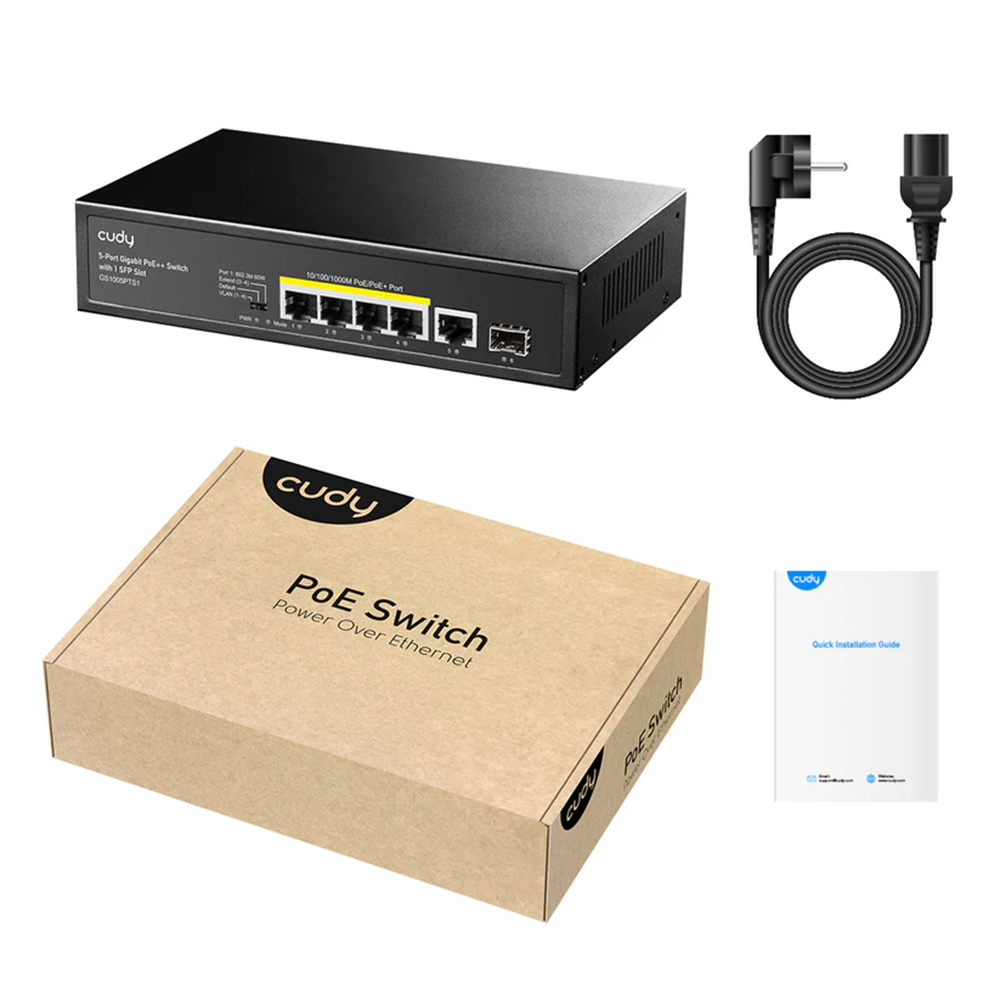

Package Content

Switch 1 pcs

Power cord 1 pcs

User manual 1 pc

Certification 1 pc

Warranty

2-Year Brand Warranty
