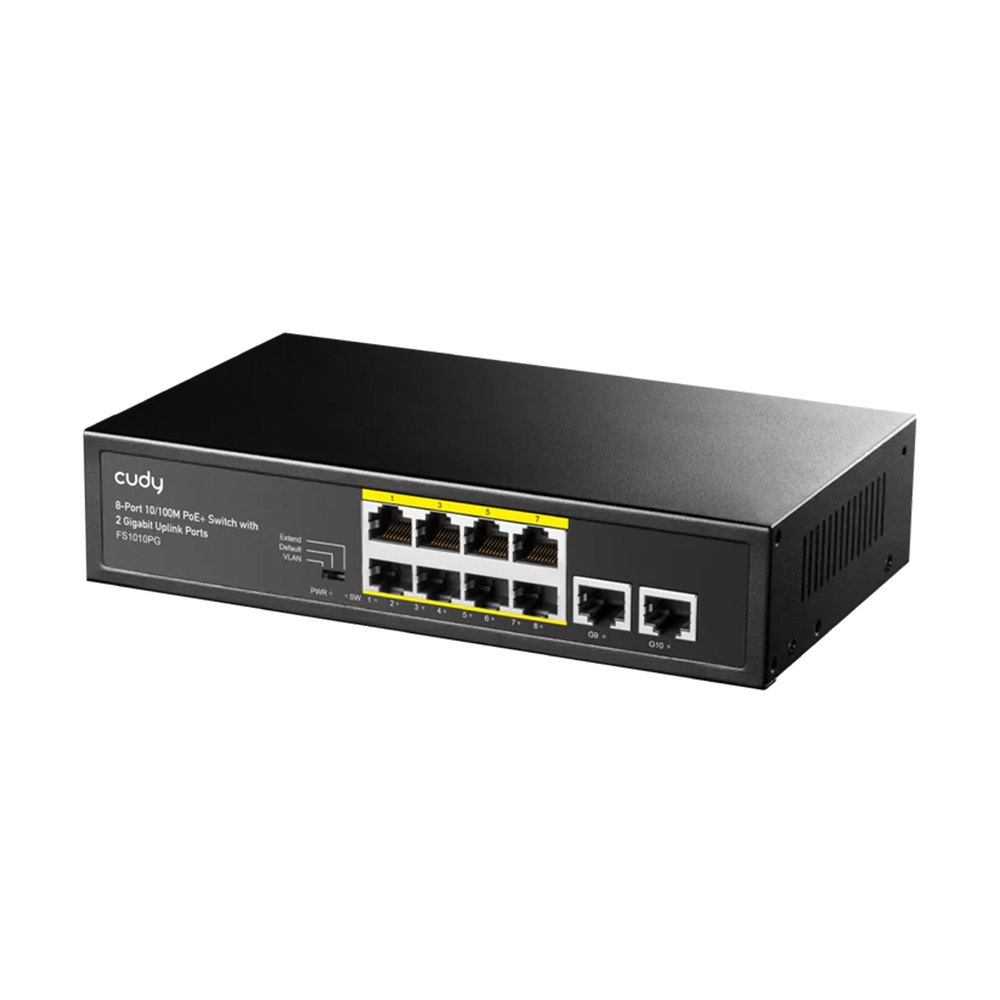

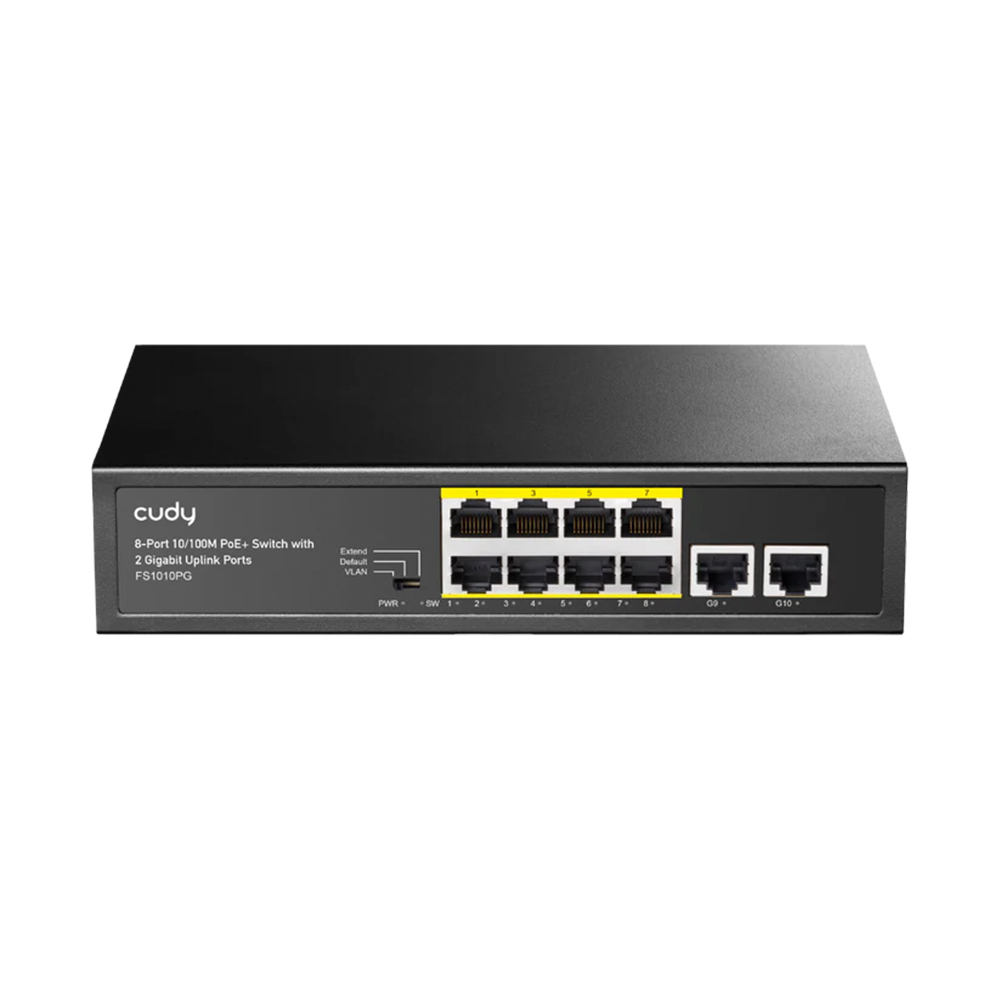

Model

FS1010PG

Interfaces

Physical Buttons: VLAN/Default/Extend DIP Switch

Gigabit RJ45 Ports: 2

10/100 Mbps RJ45 PoE Ports: 8

Max Power on a Single PoE Port: 30W

PoE Port Notes: PoE ports support 802.3at/af standards.

Extend Mode Ports: #1~#8

VLAN Mode Ports: #1~#8

LED:

Power

Link/ACT of Each Ethernet Port

DIP Mode (SW)

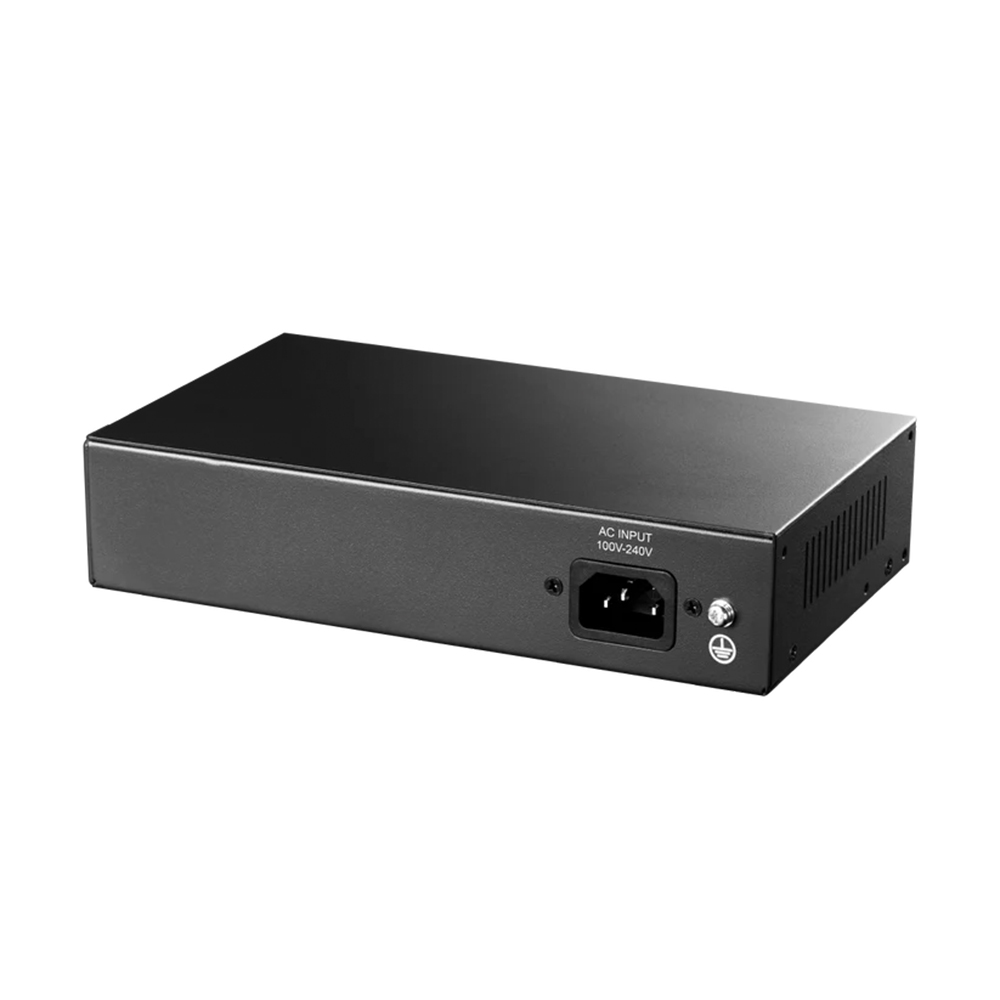

Power Input: AC Inlet

Mechanical

Dimension:

200×120×45 mm

7.87×4.72×1.77 inches

Product Weight: 630 g (22.22 oz.)

Casing Material: Metal

Installation:

Desktop

Wall-mount

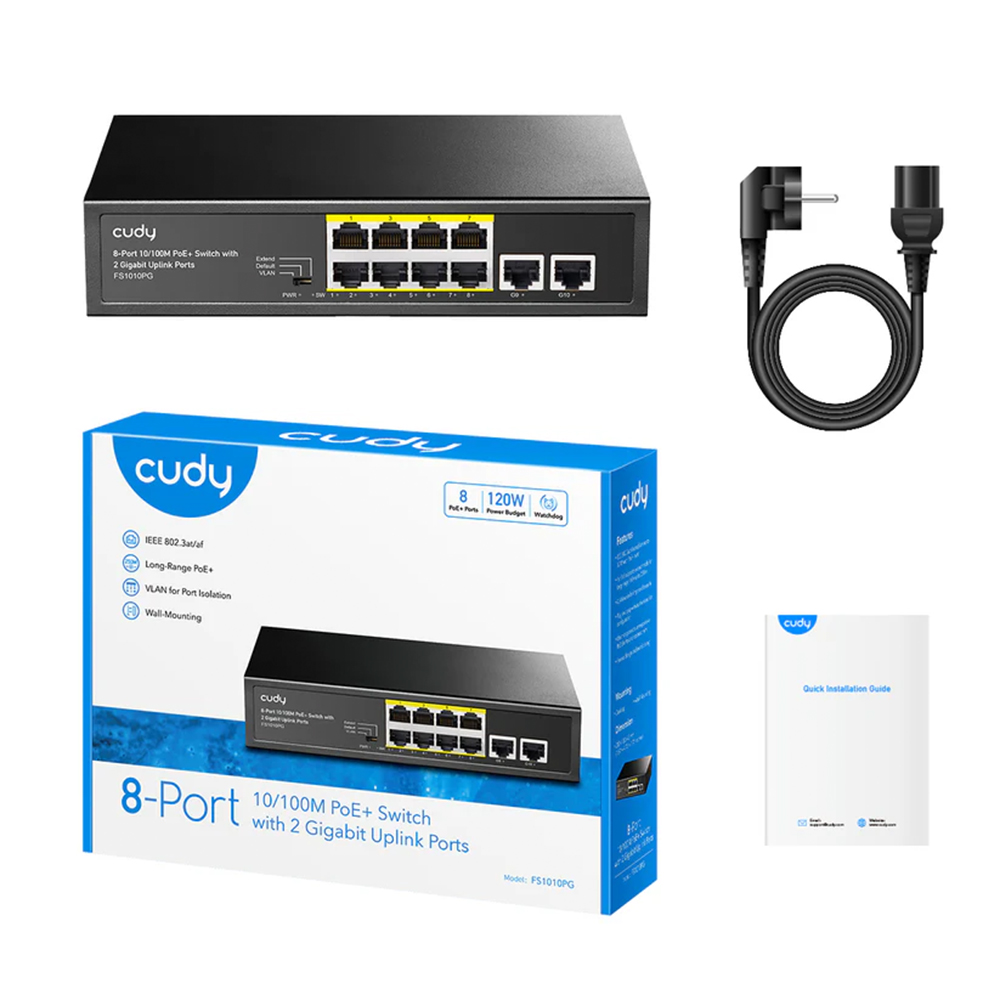

Package Content

FS1010PG

Power Cord

Installation Guide

Performance

Copper Speed and Distance:

Cat. 3 or higher cable: 100 meters at 10 Mbps

Cat. 5 or higher cable: 100 meters at 100 Mbps

Cat. 5e or higher cable: 100 meters at Gigabit

Cat. 5e or higher cable: 250 meters at 10 Mbps

Copper Speed and Distance Note:

Gigabit speed is only available on the uplink ports. 250-meter transmission is only available on the Extend Mode ports.

MAC Address Table: 2048

Max Switching Capacity: 5.6 Gbps

Max Forwarding Rate: 4.166 Mpps

Jumbo Frame: 1.5 KB

Packet Buffer: 2 Mbit

Power

Power Methods: AC

AC: 100-240V 50/60Hz

Max Power Consumption: 120W

Max Power Excluding PoE: 5W

Switching

802.3 Protocols:

802.3i 10BASE-T

802.3u 100BASE-TX

802.3x Flow Control

802.3af PoE

802.3at PoE

Warranty

2-Year Brand Warranty
