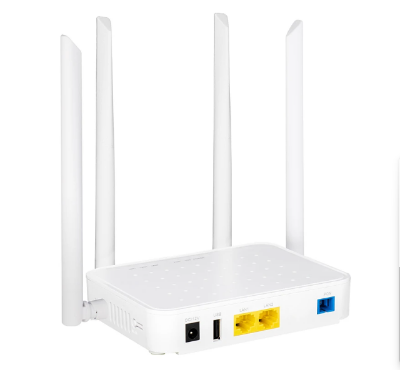

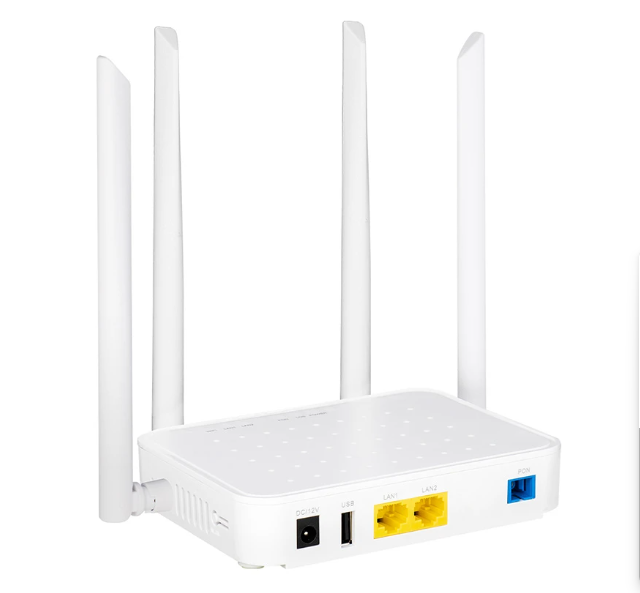

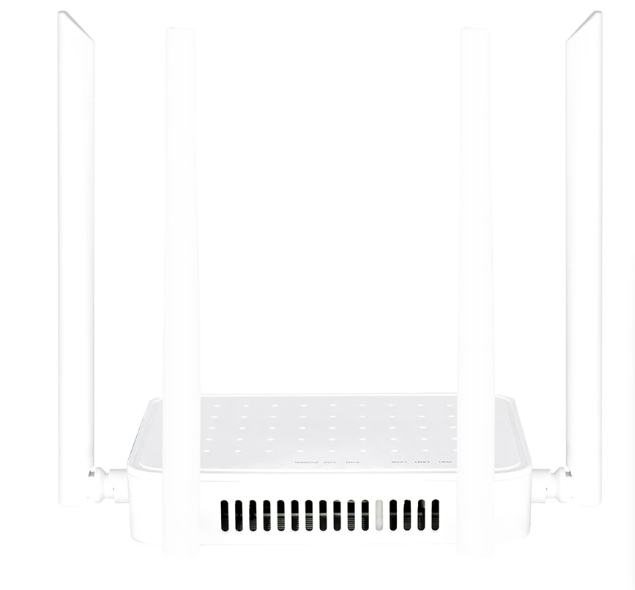

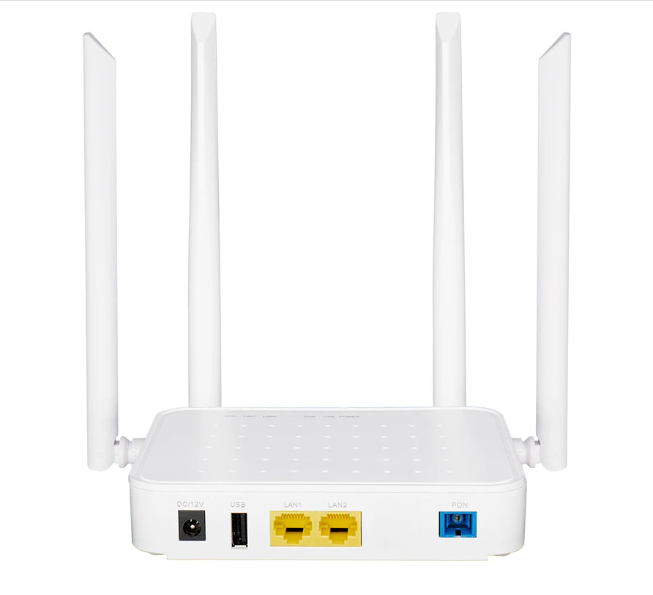

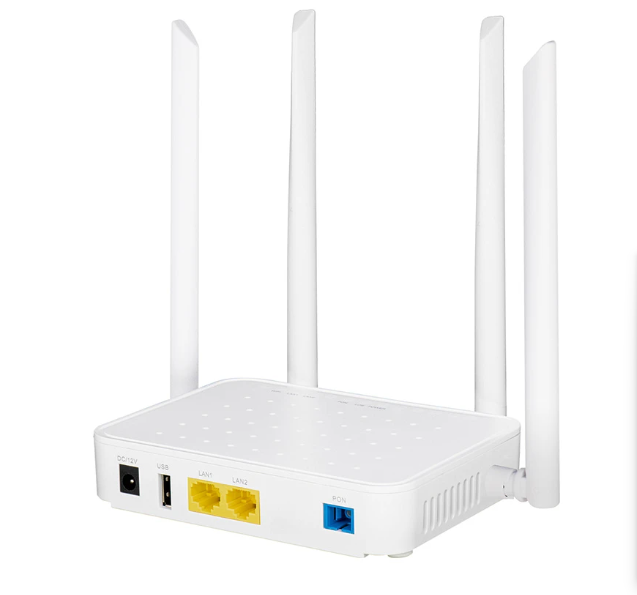

BDCOM GP1705-2G Optical Network Unit (ONU)

Brand - BDCOM, Model - BDCOM GP1705-2G, PON Type - XPON, PON Interface - Unmentioned, PON Port Connector Type - Unmentioned, PON Port Interface Type - SC/UPC, PON Port Wavelength - Unmentioned, Ethernet Interface - Unmentioned, Network Management - Unmentioned, Power Supply - 100-240VAC (Input), 2V/1A (Output), Approx. Power Consumption - 10W, Operating Temperature - -0 Degree C -45 Degree C, Operating Humidity - 10% - 85% (non-condensing ), Storage Temperature - -40 Degree C -85 Degree C, Storage Humidity - 5%-95% (non-condensing), Dimension - 140 x 105 x 30mm, Weight (Kg) - 0.3 kg, Features - Provides high-speed fiber broadband networks with PON transmission rates of 1.25Gbps uplink and 2.5Gbps downstream. Enhances data protection with network security features., Specialty - GPON and EPON autoadaptive., Others - PON ports: 1-Port SC/UPC, 2-Port Gigabit RJ45, UNI ports: 2 GE TX, WIFI: 1200Mbps, USB: 1, Optical power: 0.5~5dBm (TX power), <-28dBm (RX sensitive), Transmission Rate: Downlink 2.5Gbps/Uplink 1.25Gbps, 2x2 MIMO Antenna, UNI Ports: 1x Gigabit RJ45, 1x 100M RJ45 Ports, Standards: ITU-T G.984/G.988 IEEE802.3ah,  GBT33845-2017, YD/T 1475-2006, IEEE 802.1Q, VLAN, ITU-T Y.1291, QoS: Backpressure flow control (half-duplex), IEEE 802.3x flow control (full duplex), Against Head of Line mechanism, IEEE 802.1p, CoS,  Four priority queues on each port, WR, SP and FIFO queue schedule algorithms, Port rate limit, SLA and DBA, Network Security: MAC address number limit, MAC filter, Port protect, Multicast: IGMP-Snooping, CTC defined dynamic multicast function, MLD-Snooping, Multicast group limitation, Multicast fast-leave, VLAN: 4K VLAN, Port based VLAN, IEEE 802.1Q VLAN, Tag/Transparent/Aggregation/ Trunk/ Translation mode VLAN, CTC2.0 defined VLAN, Management: Management modes including CLI, HTTP, SNMP, TR069 and TELNET, Software upgrade through TFTP and WEB, OMCI, etc. Local or server syslog. Reliability: Loop detection, Dying-Gasp, TX/RX optical power alarm, Wireless: 802.11b/g/n/ac, 2x2 MIMO, Multi SSID, SSID encryption, Wireless channel (configurable), xPON Service: AES128 algorithm encryption, MAC/ Loid/ Hybrid authentication., Warranty - 1 Year (Adapter No Warranty), Country of Origin - China, Made in/ Assemble - China
